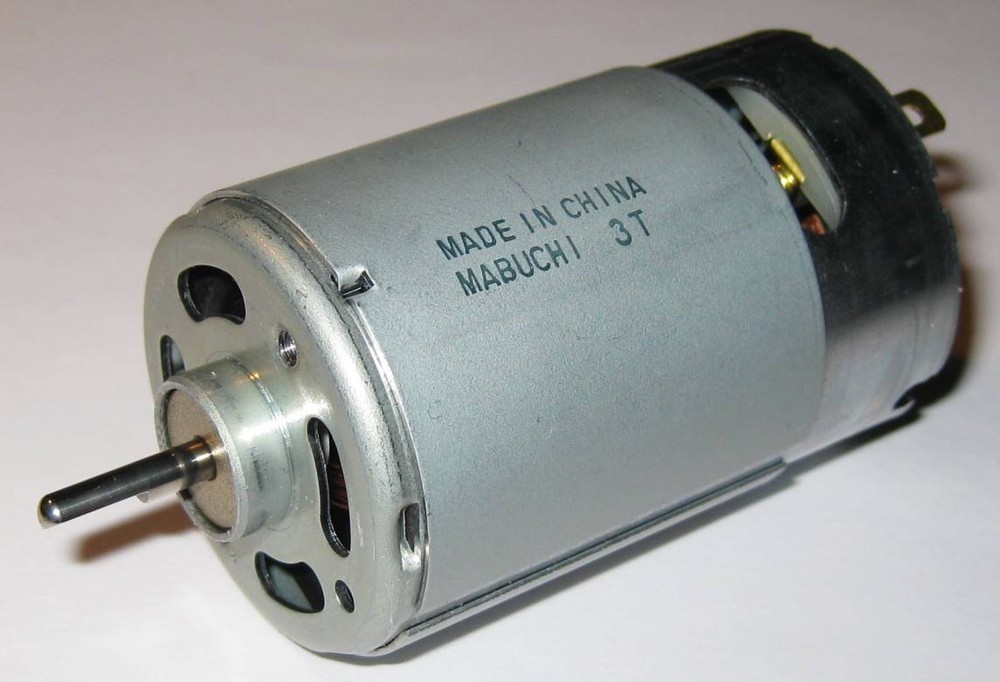

Mabuchi RS-555 PH – 12V – 4500 RPM – High Torque – 5 Pole – Hobby Motor
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 2.4 A |
| AC Frequency Rating | Not Applicable |
| MPN | RS-555PH |
| Actual Rated Input Voltage | 12 V |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | "D" Profile |
| Nominal Rated Input Voltage | 12 V |
| Model | RS-555PH |
| Starting/Locked Rotor Torque | 1360 g-cm |
| Reversible/Non-Reversible | Reversible |
| AC Motor Type | Not Applicable |
| Rated/Full-Load Torque | 380 g-cm |
| Shaft Diameter | 1/8 in |
| Base RPM | 5500 RPM |
| Brand | Mabuchi |
| AC Phase | Not Applicable |
| Type | Brushed Motors |
Mabuchi RS-555 PH - 12V - 4500 RPM - High Torque Motor Electric motor manufactured by MabuchiModel: RS555 PH - 3255 Operates on 12 VDC nominal No load speed: 5500 RPM No load current: .18 A Full load torque: 380 g-cm (5.3 oz-in)Rated speed: 4500 RPM Full load current: 2.4 A Stall torque: 1360 g-cm (18.9 oz-in)Stall current: 11.8 A 5 pole armature Motor originally manufactured for use in portable drills, printers, power seats and other applications requiring high torque Can be operated in either direction, simply reverse power supply polarity Dimensions (not including shaft): 57 mm long x 38 mm diameter (2 1/4" L x 1 1/2" D) Shaft dimensions: 3.17 mm diameter x 13 mm long (1/8" D x 1/2" L) D-type (flat on one side) Features 2 threaded (M3-0.5) mounting holes on 25 mm centers Weight: 7.7 oz (218 g)Comes with solder eyelets for power connection (can also use 3/16" quick connect terminals)
