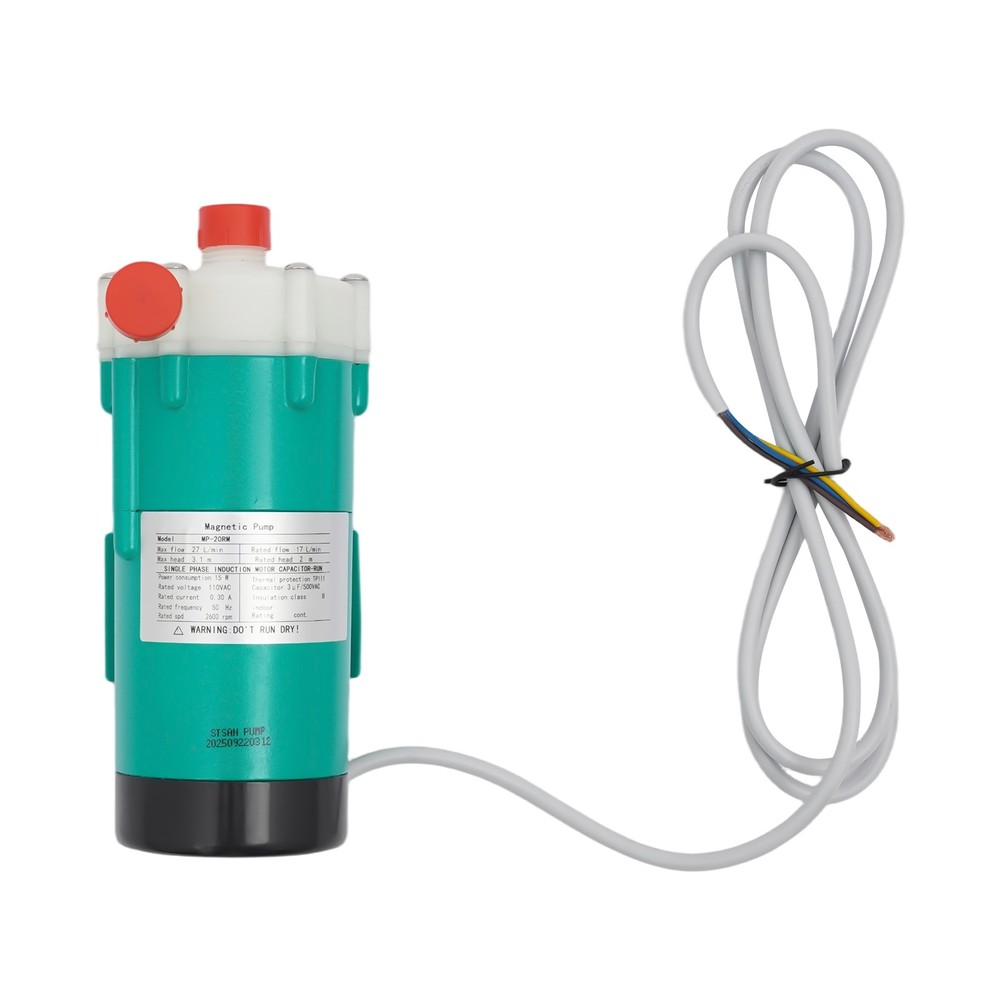

Magnetic Drive Circulating Pump Chemical Pump Corrosion Resistant Pump MP-20R US

USD 63.39 USD

SKU: LFlxNPo7

Brand: TBVECHI

GTIN: Does not apply

Condition: New

Tags: 0.3A for for MP-20R 110V, 50/60Hz 111 15W for MP-20R 17L/min for MP-20R 18mm for MP-20R 2600r/min for MP-20R 27L/min 27L/min for MP-20R 2m for MP-20R 3.1m for MP-20RR 3uF / 500V AC Circulator Pump Compliant Electromagnetic Engineering plastics Horizontal MP-20R single suction TBVechi tp111 Universal Installation Yes

Categories: Electrical Equipment & Supplies

Specifications

Brand	TBVECHI
Model	MP-20R
Rated Voltage	110V, 50/60hz
Rated Power	15W for MP-20R
Rated Current	0.3A for for MP-20R
Maximum Flow	27L/min for MP-20R
Rated Flow	17L/min for MP-20R
Maximum Lift	3.1m for MP-20RR
Rated Head	2m for MP-20R
Rated Speed	2600r/min for MP-20R
Tube Interface	18mm for MP-20R
Capacitance	3uF / 500V AC
Thermal Protection Type	tp111
Village Quality	engineering plastics
Driving Mode	electromagnetic
Pump Shaft Position	horizontal
Impeller Classification	single suction
Type	Circulator Pump
Manufacturer Warranty	Yes
Maximum Flow Rate	27L/min
Energy Star	Compliant
Installation	Universal Installation

Specification Model: MP-20RM Color: Green Style: Modern Material: Engineering Plastic Driving Mode: Electromagnetic Pump Shaft Position: Horizontal Impeller Classification: Single Suction Motor Type: Asynchronous AC Motor Rated Current: 0.3A Capacitance: 3μF/ 500VAC Power Source: Wired Rated Voltage: 110V Rated Power: 15W Normal Conveyed Medium's Temperature: 0~80℃/32~176℉ Maximum Flow: 27L/7.13Gal/Min Rated Flow: 17L/4.49Gal/Min Maximum Lift: 3.1m/10.17ft Rated Head: 2m/6.56ft Rated Speed: 2600rpm Tube Interface: G1/2 Thermal Protection Type: Tp111 Insulation Class: B Noise: About 45dB Power Cable Length: 1.6m/5.25ft Product Size: 20.5*8.9*11.6cm/8*3.5*4.
