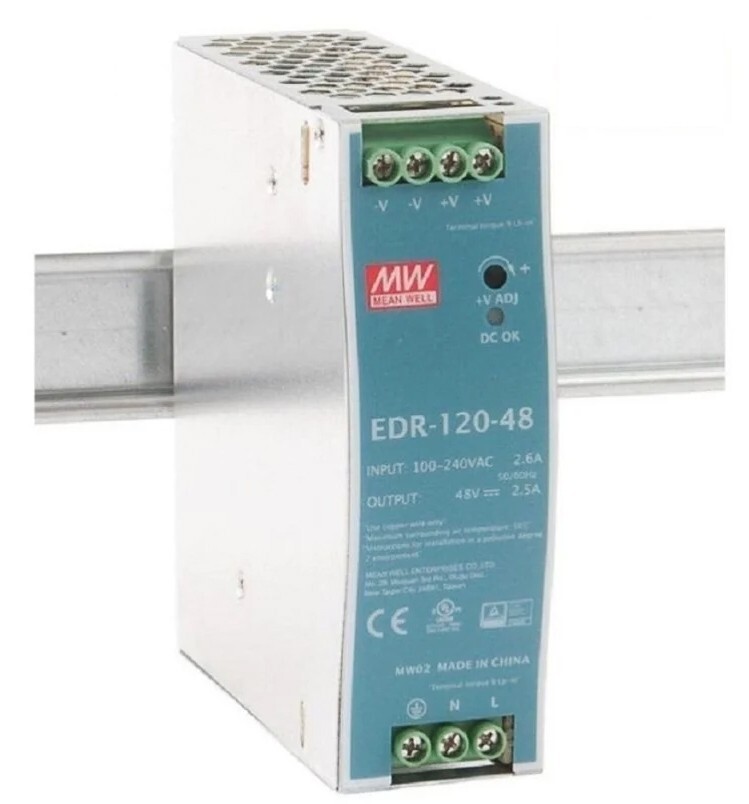

MEAN WELL – EDR-120-48 AC/DC DIN Rail Industrial Power Supply 48V 120W DC 2.5A
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Nominal Voltage Rating (AC) | 120 V |
| Inrush Current Rating | 2.5 A |
| Mounting Style | DIN Rail Mount |
| Nominal Voltage Rating (DC) | 48 V |
| Nominal Current Rating | 2.5 A |
| Nominal Power Rating | 120 W |
| Item Depth | 4.47" |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Installation Area | Indoor/Outdoor |
| Brand | MEAN WELL |
| Efficiency | 88.5% |
| Output Voltage Rating (DC) | 48 V |
| Item Height | 4.93" |
| Maximum Operating Temperature | 60 °C (140 °F) |
| Item Width | 1.57" |
The MEAN WELL EDR-120-48 is a reliable AC/DC power supply that delivers a single output of 48V at 2.5A, with a total power capacity of 120W. Designed for efficiency and stability, this power supply is suitable for various industrial and technological applications. With its compact design and robust construction, the EDR-120-48 ensures long-lasting performance and high levels of safety. Whether for manufacturing facilities, automation equipment, or telecommunications systems, this MEAN WELL power supply is an ideal choice for powering your devices with a steady and efficient flow of electricity. EDR-120 is designed with a metal housing that enhances the unit's power dissipation. With working efficiency up to 88.5%, the entire series can operate at the ambient temperature between -20℃ and 60℃ under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508,TUV BS EN/EN62368-1, and etc.) make EDR-120 a very competitive power supply solution for industrial applications. Economical and slim, the EDR range of power supplies can be installed on a TS-35/7.5 or TS-35/15 mounting rail, and has been designed for space saving within cabinets. The EDR series is an ideal choice for many industries, fitting various inductive and capacitive applications. • 48V DC 2.5A output• Rated power: 120W• AC input voltage range: 90 VAC ~ 264 VAC• Dimensions: 4.47" L x 1.57" W x 4.93" H (113.5mm x 40.0mm x 125.2mm)
