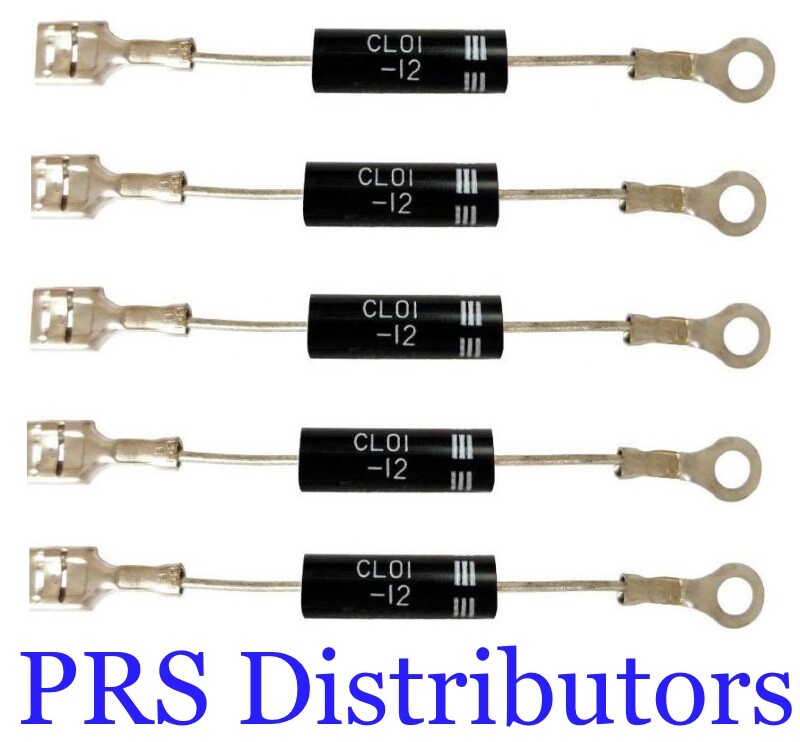

MICROWAVE OVEN HIGH VOLTAGE DIODE CL01-12 DIODE 12kV 350mA HVM12 / T3512 / 512TH
USD 6.00 USD
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Maximum Gate Trigger Voltage | 12KV |
| Peak Forward Voltage | 12KV |
| Peak Surge Current | 350mA |
| Country/Region Of Manufacture | China |
| Mounting Style | Flush Mount |
| Maximum Gate Trigger Current | Not Applied |
| Peak Reverse Repetitive Voltage | 12KV |
| Diode Configuration | Single |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Material | Silicone |
| Maximum Continuous Current | 350 mA |
| Polarity | Positive |
| Maximum Operating Temperature | 105 °C (221 °F) |
| Series | CL01-12 |
| Type | Diodes |
| MPN | CL01-12 |
| Visible Spectrum | Not Applied |
| Wavelength | Not Applied |
| Packaging | Bag |
| Resistance Rating | Not Applied |
| Brand | Unbranded |
| Model | CL01-12 |
| Maximum Diode Capacitance | Not Applied |
| Maximum Forward Current | 350mA |
This is for MICROWAVE OVENHIGH VOLTAGE RECTIFIER DIODE CL01-12 DIODE 12KV 350mA Complete with screw on terminal and spade push on terminal attached Replaces:CL01-12A, CL04-12, CL04-12A, HVM12, T3512, T3512H, CL01-10, CL01-10A Type: High Voltage Microwave Diode Model: CL01-12 Voltage: 12KV Current: 350mA Peak current: 50Aworks efficiently and perfectly in all household microwave ovens up to 1500 Watts
