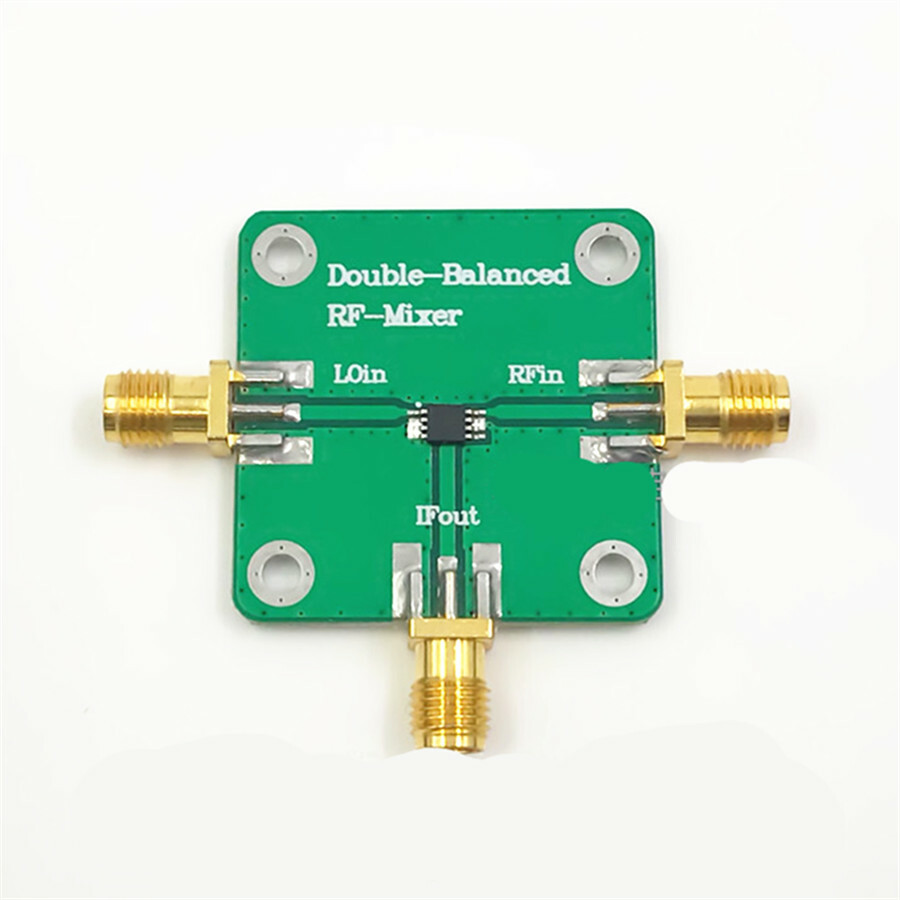

Microwave RF double balanced mixer RFin=1.5–4.5GHz, RFout=DC–1.5GHz
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Model | DC-4.5 GHz |
| MPN | Does Not Apply |
Part No. : DC-4.5GHz Download :Microwave RF double balanced mixer RFin=1.5--4.5GHz, RFout=DC--1.5GHz 1. Typical uses and features: 1. RF microwave receiver down conversion 2. Internally composed of double balanced microwave diodes with high reliability 3. High conversion efficiency: 8.5dB loss 4. Local oscillator and RF input isolation is high: 40dB 2. Technical indicators 1. Power supply: passive mixer (no power required) 2. RF input: 1.5--4.5GHz 3. IF output: DC-1.5GHz 4. Conversion loss: 8.5dB 5. Noise figure: 8.5dB (SSB) 6. Local oscillator input: 13dBm 7. Port isolation: Local oscillator to RF: 40dB (typical) Local oscillator to intermediate frequency: 35dB (typical) 8. High input 1P3: 18dBm 9. High input P1dB: 8dBm 10. Dimensions: 33*33mm (without connector) 11. Connector model: standard SMA female head (outer screw inner hole) 3. How to use 1. RF input: RFin port 2. Local oscillator input: LOin port (recommended signal strength 13dBm) 3. IF output: IFout port 4. Power supply: This inverter is a passive device and does not need to supply power. 4. Absolute maximum value (can cause physical damage to the device, not recoverable) 1. RF local oscillator maximum input value: 13dBm 2. The maximum input of the local oscillator: 27dBm (0.5W) Payment We accept PayPal only.All major credit cards are accepted through secure payment processor PayPal.Payment must be received within 7 business days of auction closing.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay.Delivery detailsItem will be shipped out within 48 hours upon receipt of your payment.The shipping time details, please read the shipping and delivery together with the price.We ship to your PayPal address. Please make sure your PayPal address is correct before you pay.Considering the cost of business and easy shipping, usually the item is packed in retail packaging.Terms of saleAll the products we are selling include factory warranty, don?t cover items that have been abused, burned and damaged in any form.Please contact us via eBay Message if you have NOT received item in 30 days, we will check it with post office, and then resend or refund any missing item.In the unlikely event that your product is faulty in anyway, you must contact us ASAP and then return it within 7 days of receipt. The postage and packing fee will NOT be refunded.We will not be responsible for the delivery or insurance charges incurred in returning item back to us.If you return an item purchased from us, it must be back in Factory Condition. This includes packaging, inserts, manuals etc. please allow us to 5 Working Days for us to process your returned item.About usIf you have any questions, please fee free to email our service specialists 24 Hours a Day, 7 Days a Week.We will reply you ASAP. If no response within 24 Hours, please check the spam in your mail box.We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help.Contact usPls contact us through ebay message or email.
