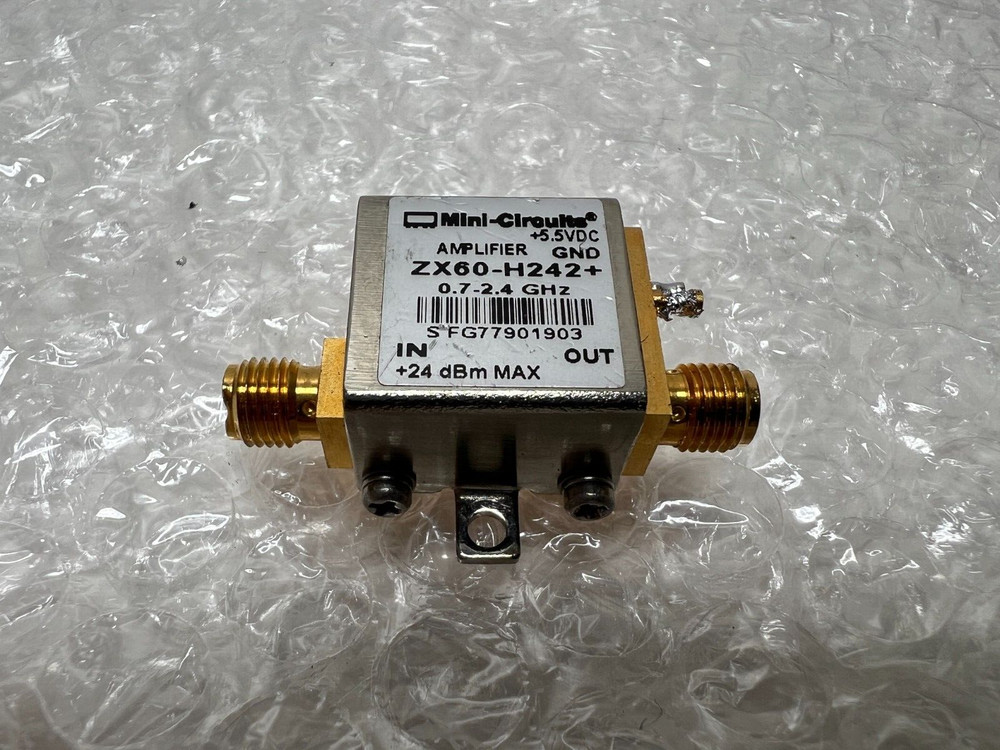

Mini-Circuits ZX60-H242+ Gain Block, 700 – 2400 MHz, 50Ω SMA
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Mini-Circuits |
| Type | Amplifier |
These Gain Blocks were gently removed from production assemblies, and are in known working condition. Minor scratches will be present, and residual solder on power lugs. Industry Leading High IP3, 46 dBm typ. y Output Power at 1 dB Compression, +23 dBm y Wideband, 700 - 2400 MHz Extremely High IP3 vs. Current 47.7 dBm typ at 1500 MHz versus DC Power Consumption of 145mA The ZX60-H242+ offers industry leading IP3 performance relative to power consumption. The combination of the design and E-PHEMT provides enhanced linearity as evidence in the IP3. This feature makes this amplifier ideal for use in: • Driver amplifiers for complex waveform up converter paths • Drivers in linearized transmit systems • Secondary amplifiers in ultra High Dynamic range receivers Optimized Frequency Range Covering primary wireless communication bands: cellular and LTE Low Noise Figure, 3.0 dB typ. A unique feature of the ZX60-H242+ is the combination of low noise figure performance with the high dynamic range, differentiating this amplifier from the competition. Unconditionally Stable Capable to operate to a wide range of source and load impedances. Very Small Size, 0.75" x 0.75" The unique unibody
