Mini High Speed 15000 RPM CW Coreless Motor – 1.5 V DC – 10T Gear – 2 Pin Plug

USD 9.95 USD

SKU: rA0oVulq

Condition: New

Tags: 1.0 mm 1.5 V 15000 RPM 30 Days Buyer Coreless Does Not Apply Returns Accepted Straight Unbranded

Categories: Metalworking Equipment

Specifications

Return Shipping Will Be Paid By	Buyer
All Returns Accepted	Returns Accepted
Item Must Be Returned Within	30 Days
MPN	Does Not Apply
DC Stator/Winding Type	Coreless
Shaft Type	Straight
Nominal Rated Input Voltage	1.5 V
Shaft Diameter	1.0 mm
Base RPM	15000 RPM
Brand	Unbranded

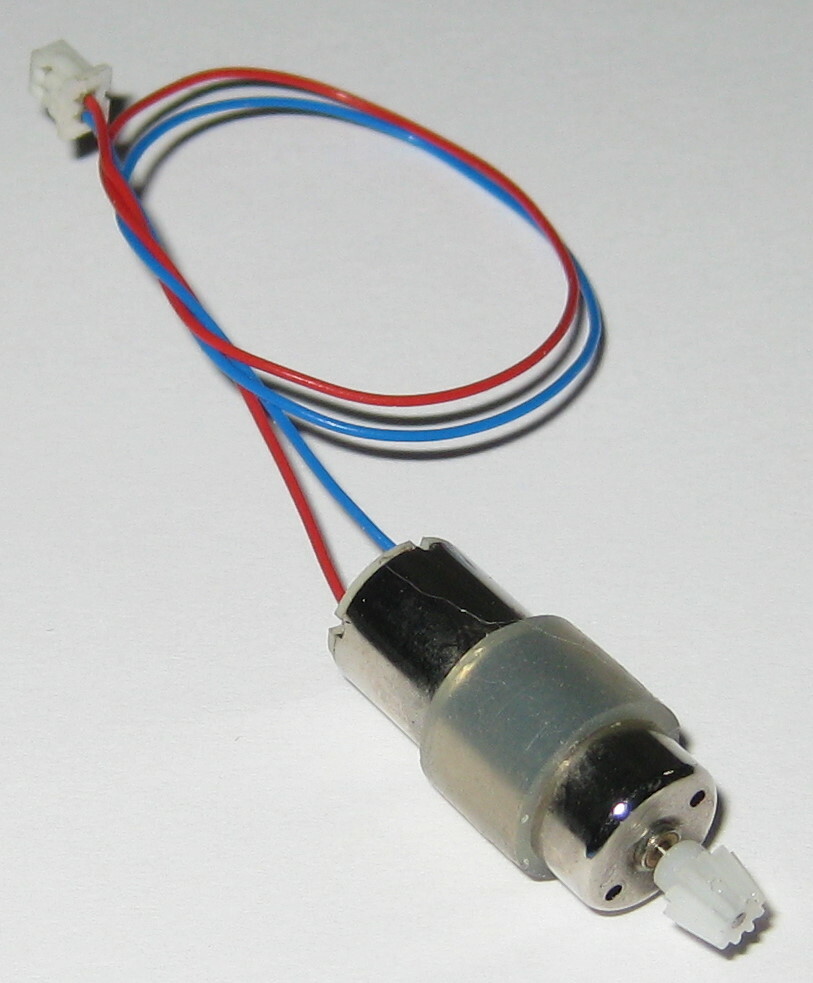

Miniature High Speed 15000 RPM CW Coreless Motor - 1.5 V DC - 10T Bevel Gear - 2 Pin Plug DC coreless electric mini motor No load speed: 15,000 RPM Voltage: 1.5 VDC No load current: 80 mA Stall Current: 3.4 A Terminal resistance: 0.4 ohms Shaft dimensions: 5 mm long x 1.0 mm diameter Comes with a 10 tooth beveled plastic gear Gear dimensions: 3.4 mm long x 4.2 mm diameter Motor dimensions (not including shaft): 20 mm long x 8.5 mm diameter Removable silicone band (7 mm long x 10 mm outside diameter) around motor case 120 mm long leads terminated with a mini 2 pin female plug Weight: 0.2 oz. (6 g) Clockwise direction of rotation when looking at the gear face (with positive connected to red lead)
