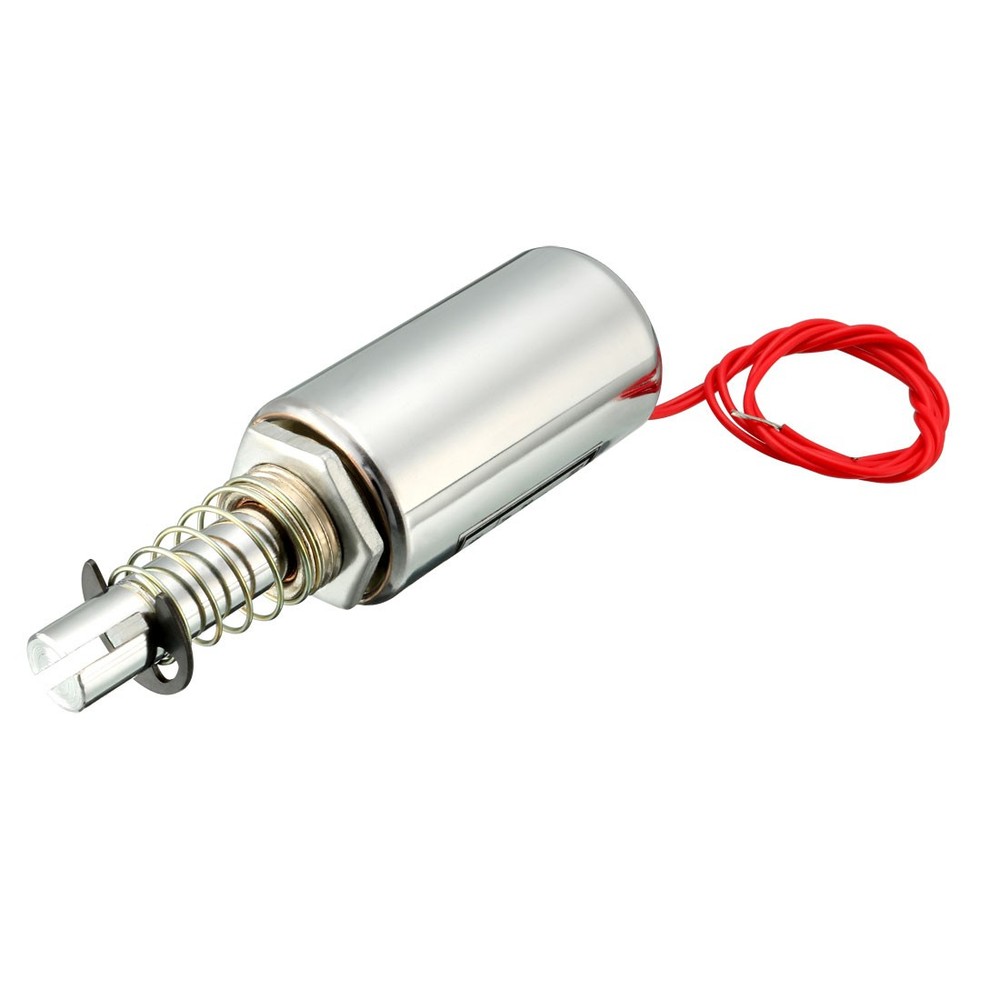

MQ8-Z15B DC 12V 10mm 15N Pull Push Type Linear Motion Solenoid Electromagnet
Specifications
| Brand | Uxcell |
| Material | Metal |
| Total Length | 10cm/3.94" |
| Cable Length | 210mm |
| Push Bar Dia | 11mm/0.43" |
| Type | Push Pull Type |
| Rated Voltage | DC 12V |
| Force And Travel | 10mm 15N ; 0mm 30N |
| Tread Dia | M18 |
| Country Of Manufacture | CHINA |
| Model | MQ8-Z15B |
| Main Color | Silver Tone |
| Net Weight | 240g |
| UPC | 609876964036 |
Description:Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.Support DC 12V voltage, high power, pull push type, linear motion, is easy to install.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.Specification: Type: Push Pull Type;Rated Voltage: DC 12V;Force And Travel: 10mm 15N ; 0mm 30NCable Length: 210mmTotal Length: 10cm/3.94";Tread Dia: M18Push Bar Dia: 11mm/0.43"Size: 30 x 50mm/1.18" x 2"(D*L) ;Package Content:1 x DC Solenoid Electromagnet;Note:Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
