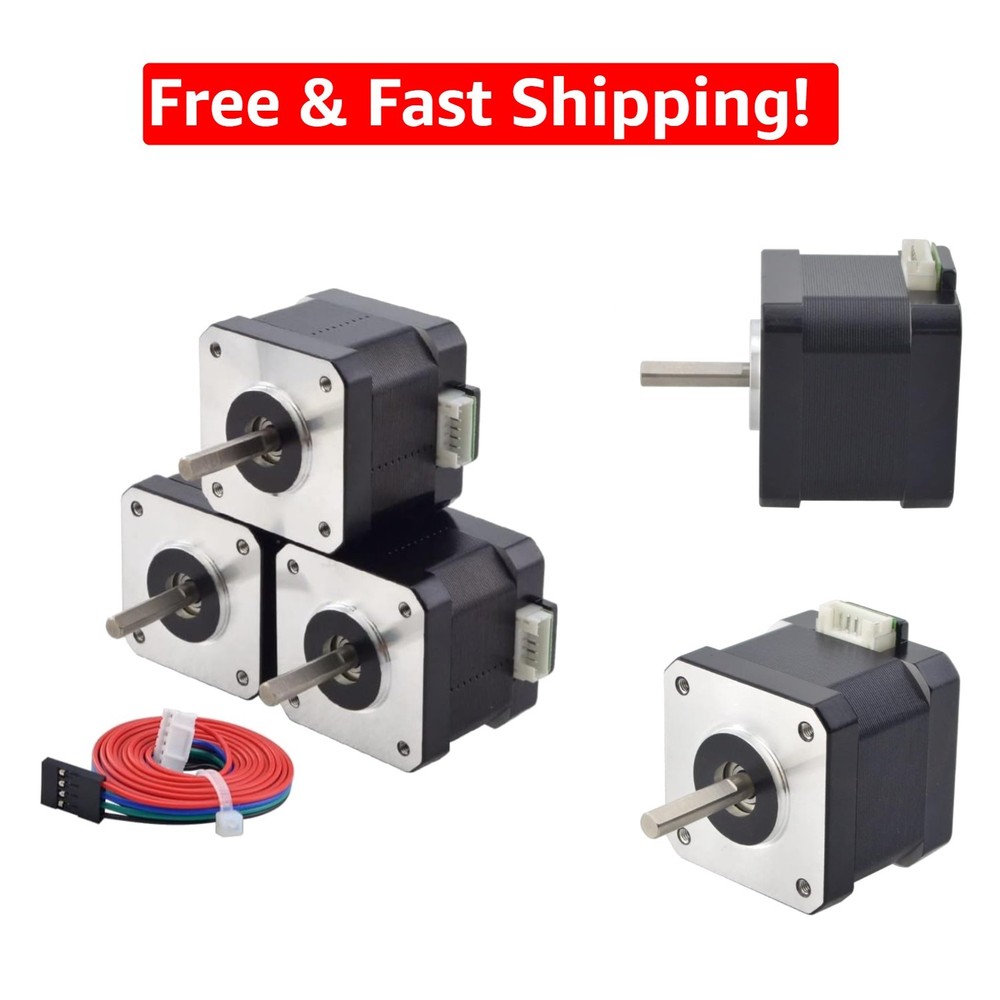

Nema 17 Stepper Motor – 42Ncm, 1.5A, Compact & Reliable for Automation Projects

USD 18.79 USD

SKU: bbDgm4jy

Brand: Unbranded

MPN: Nema_17_Stepper_Motor

GTIN: Does Not Apply

Condition: New

Tags: 0.21 kg 1.5 A 1.5 Watts 1.50A 1.65"w X 1.65"h 1.8 Deg 1.8° (200 Steps) 1000mm 2.3 ohms 2.3ohms 20mm 23.5mm 280g 38mm 4-Wire Bipolar 4.00mh ± 20%(1khz) 42 Ncm 42 RPM 42 x 42mm 42Ncm(59.49oz.in) 5 mm Bipolar Stepper Black-1.8° Metal Nema 17 Stepper Motor Nema_17_Stepper_Motor Not Protected Solid Shaft Unbranded Unit Φ5mm

Categories: Fasteners & Hardware

Specifications

*frame Size	42 X 42mm
*phase Resistance	2.3ohms
Base RPM	42 rpm
Size	Black-1.8°
Material Type	Metal
*motor Type	Bipolar Stepper
MPN	Nema_17_Stepper_Motor
Product Dimensions	1.65"w X 1.65"h
Holding Torque	42 Ncm
*holding Torque	42ncm(59.49oz.in)
*d-cut Length	20mm
Unit Type	Unit
Horsepower	1.5 Watts
*lead Length	1000mm
*shaft Length	23.5mm
*inductance	4.00mh ± 20%(1khz)
Wiring Configuration	4-Wire Bipolar
Full Step Angle	1.8° (200 Steps)
Full Load Amps	1.5 A
Speed	42 Rpm
Rated Current Per Phase	1.5 A
Shaft Type	Solid Shaft
Shaft Diameter	5 mm
*rated Current/phase	1.50a
*shaft Diameter	Φ5mm
Brand	Unbranded
*step Angle	1.8 Deg
Protection Against Liquids	Not Protected
Item Dimensions W X H	1.65"w X 1.65"h
*weight	280g
*body Length	38mm
Resistance Per Phase	2.3 ohms
Model	Nema 17 Stepper Motor
Protection Against Solids	Not Protected
Item Weight	0.21 Kg

Holding Torque: 42Ncm (59.49 oz.in). Introducing our high-performanceNema 17 Stepper Motor, designed for enthusiasts and professionals in automation. This powerful motor features a holding torque of.

Nema 17 Stepper Motor – 42Ncm, 1.5A, Compact & Reliable for Automation Projects
