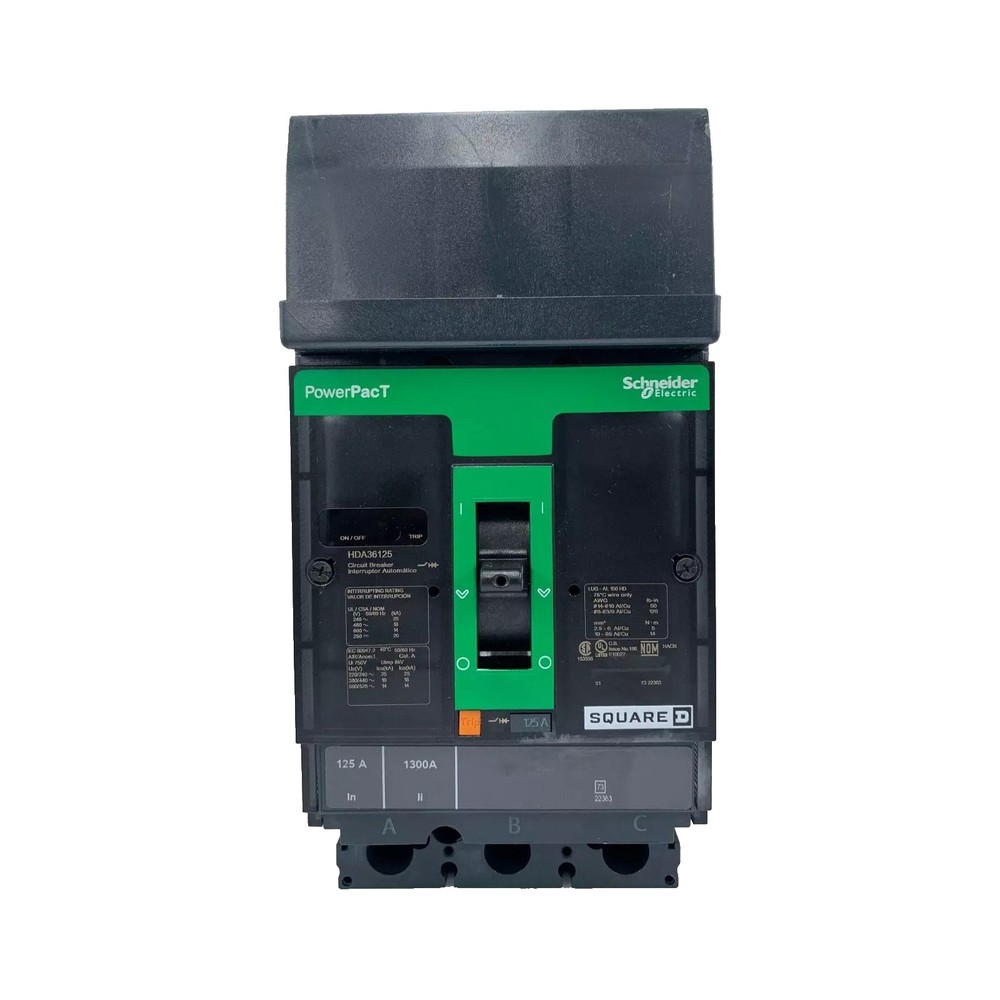

NIB – Square D – HDA36125 – Powerpact H Circuit Breaker, 125A, 3 Pole
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | I-Line |
| Maximum Amperage | 125 A |
| Color | Black |
| MPN | HDA36125 |
| Brand | Square D |
| Operation Method | On/Off |
| Type | Main Breaker |
| Control Style | Analog/Mechanical |
| Voltage | 551-600 V |
| Model | HDA36125 SQD |
| Application | Charging/Power |
NIB - Square D - HDA36125 - Powerpact H Circuit Breaker, 125A, 3 Pole The PowerPact H circuit breaker is a heavy-duty device designed for electrical distribution applications. It provides reliable protection with thermal-magnetic technology and a breaking capacity suited for various voltage levels.Product Name: PowerPact H Product Or Component Type: Circuit breaker Device Application: Distribution Line Rated Current: 125A Number Of Poles: 3P Protected Poles Description: 3t Control Type: Toggle Breaking Capacity Code: D Breaking Capacity (Ue) Rated Operational Voltage: 25 kA 240 V AC 50/60 Hz UL 489 18 kA 480 V AC 50/60 Hz 14 kA 600 V AC 50/60 Hz 20 kA 250 V DC 25 kA 220/240 V AC 50/60 Hz IEC 60947-2 18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 14 kA 500/525 V AC 50/60 Hz IEC 60947-2 20 kA 250 V DC IEC 60947-2 20 kA 500 V DC IEC 60947-2 [Uimp] Rated Impulse Withstand Voltage: 8 kV IEC 60947-2 Trip Unit Technology: Thermal-magnetic Magnetic Tripping Current: 1700A Magnetic Hold Current: 900A Continuous Current Rating: 80% [Ui] Rated Insulation Voltage: 750 V IEC 60947-2 Suitability For Isolation: Yes IEC 60947-2 Utilization Category: Category A AWG Gauge: AWG 14...AWG 3/0 aluminium/copper terminal Local Signalling: Switched off (OFF) 1 trip indicator green) Mounting Mode: I-Line bracket Electrical Connection: I-Line connection, line Terminal Identifier: Lugs, load Mounting Height: 4.50 in (114.30 mm) Tightening Torque: 44.25 lbf.in (5 N.m) 0.00...0.01 in² (2.5...6 mm²) (AWG 14...AWG 10) 123.91 lbf.in (14 N.m) 0.02...0.15 in² (10...95 mm²) (AWG 8...AWG 3/0) Number Of Slots: 2 (auxiliary switch OF plug-in), 1 (alarm switch SD plug-in), 1 (overcurrent trip switch SDE plug-in), 1 (voltage release MN or MX plug-in) Color: Black Phase Connection: ABC Communication Interface: Modbus, Ethernet Circuit Breaker Application: HACR rated LiveWire Electrical Supply has been serving electrical distributors across the United States since 2005. With thousands of items in stock and ready to ship. LiveWire is the trusted need-it-now power distribution partner for leading electrical distributors for new-in-box circuit breakers, fittings, fuses, motor control and switchgear. We stock a $60+ million inventory of new-in-box, products across Square-D, Eaton, GE, Siemens, Allen-Bradley, Crouse-Hinds, Appleton, Bussmann, Hammond Power, and ACME. Through our core values of Customer First, Integrity, and Commitment to Premium Vendor Relationships, LWES is committed to your success.
