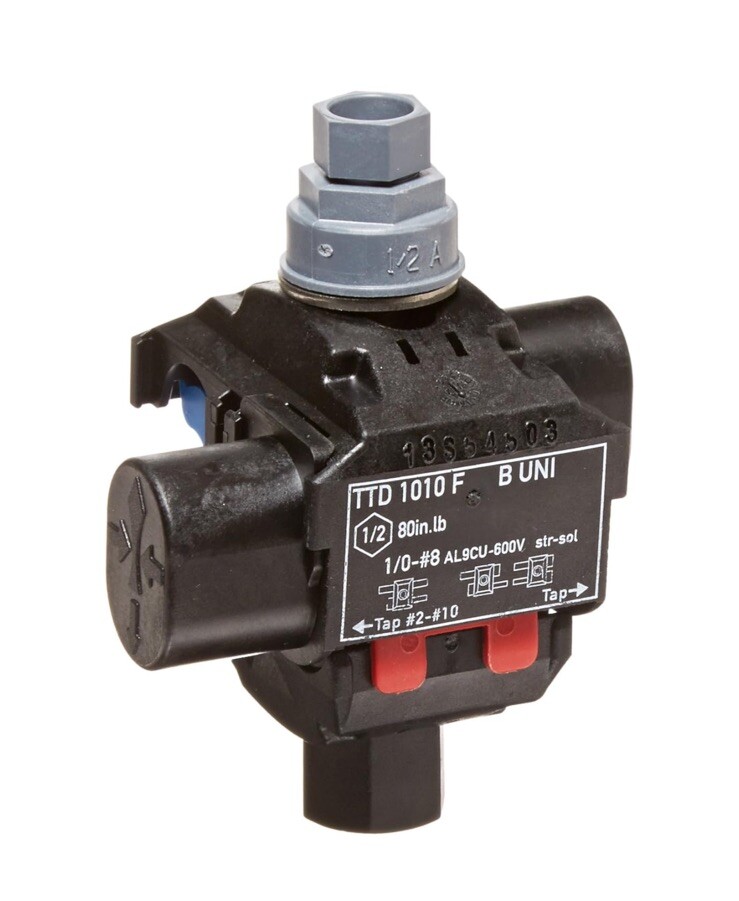

NSI IPCS1002 Insulation Piercing Connector 1/0-8AWG 600V, TTD 1010 F
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Heat Shrink Ratio | 2:1 |
| Color | Black |
| Material | Plastic |
| MPN | IPCS1002 |
| Item Length | 2.20” |
| California Prop 65 Warning | Yes |
| Brand | NSI Industries |
| Type | Connector |
| Termination Type | Compression |
| Connector Style | Piercing |
| Contact Material | Copper |
| Compatible Wire Gauge (AWG) | 1-5 |
| Compatible Mounting Type | In-Line |
| Country/Region Of Manufacture | France |
NSI IPCS1002 IPCS Series Easy-Tap Insulation Piercing Connector, 1/0-8 AWG Main and 2-10 AWG tag Conductor Range, 1.8" Width, 3.1" Height, 2.2" Length Description This NSi Industries IPCS1002 Easy-Tap insulation-piercing connector is suitable for tapping or splicing electrical lines in copper-to-copper, copper-to-aluminum, and aluminum-to-aluminum solid or stranded wire applications. It can be used on main lines from American Wire Gauge (AWG) 1/0 to #8 with tap lines from #2 to #10 AWG. It is fully insulated and can be used on energized conductors as long as the tap line is not under load. Double shear-head bolts ensure that the proper amount of torque is applied during installation. This connector is not recommended for use with extra-flexible cables and is not approved for submersible applications. It is rated for 600V and 90 degrees C and meets American National Standards Institute (ANSI) C119.4 requirements and is Underwriters Laboratories (UL) 486B Listed. This insulation-piercing connector is suitable for a wide range of electrical line tapping and splicing applications with appropriately sized conductors. Specifications Main line size range1/0 to #8 AWGTap line size range#2 to #10 AWGCopper current rating190 ampAluminum current rating150 ampVoltage rating600VTemperature rating90 degrees CDimensions*3.1 x 1.8 x 2.2 inches (H x W x L)Standards metANSI C119.4, UL 486B Listed * H is height, the vertical distance from bottom to top; W is width, the horizontal distance from left to right; L is length, the horizontal distance from front to back. NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.
