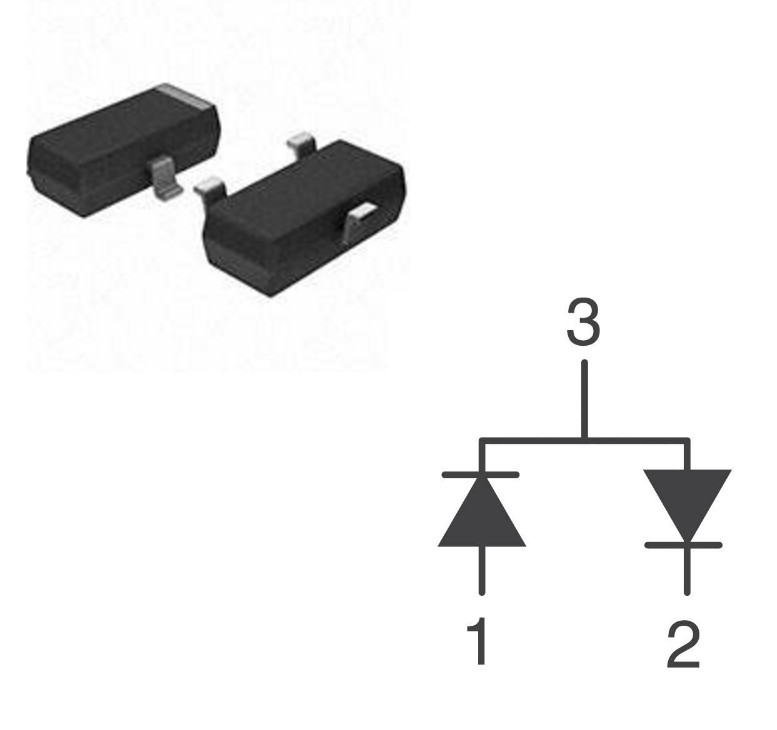

NXP BAV99 DIODE ARRAY GP 70V 200MA SOT-23-3 SMD CODE A7W – DC# 1105 ORIGINAL OEM
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | NXP |
| Mounting Style | Surface Mount |
| Packaging | Cut Tape |
| Model | BAV99 |
| Package/Case | SOT-23-3 |
| MPN | BAV99 |
| Maximum Operating Temperature | 150 °C (302 °F) |
| Country/Region Of Manufacture | China |
| Minimum Operating Temperature | -55 °C (-67 °F) |
Packaging: Cut Tape (CT) Part Status Active Diode Configuration 1 Pair Series Connection Diode Type Standard Voltage - DC Reverse (Vr) (Max) 70V Current - Average Rectified (Io) (per Diode) 200mA Voltage - Forward (Vf) (Max) @ If 1.25V @ 150mA Speed Small Signal =< 200mA (Io), Any Speed Reverse Recovery Time (trr) 6ns Current - Reverse Leakage @ Vr 2.5µA @ 70V Operating Temperature - Junction -55°C ~ 150°C Mounting Type: Surface Mount Package / Case: TO-236-3, SC-59, SOT-23-3 Supplier Device Package SOT-23-3 (TO-236) - Many customers ask if they can ship their products in a paper envelope. Unfortunately, we cannot do that because merchandise needs extra protection, and USPS does not provide a tracking number for this type of service.- The shipping service we offer is First-Class Package Service, which is a domestic mail service offered by USPS. It is designed for mailing lightweight packages that weigh up to 15.99 ounces and offers delivery in 1-5 business days. It includes a tracking number, allowing customers to track their packages. USPS prices start at $4.75, but we don't have any control over shipping prices.
