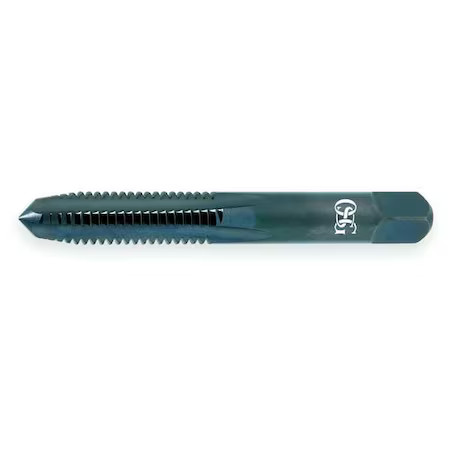

Osg 1124100 Straight Flute Hand Tap, 5/8″-18, Bottoming, 4 Flutes, Unf
USD 39.69 USD
Specifications
| Brand | OSG |
| MPN | 1124100 |
| Size | 5/8" |
| Style | Straight Flute Tap |
| Item | Straight Flute Tap |
| Overall Length | 3-13/16" |
| Thread Direction | Right Hand |
| Thread Length | 1-13/16" |
| Thread Type | UNF |
| Type | Straight Flute Tap |
| Application | General Machining Taps |
| List Number | 101 |
| Overall Length (In.) | 3-13/16 |
| Shank Dia. | 0.480" |
| Tap Style | Straight Flute (Hand) |
| Weight | 0.1900 |
| Length | 5.000 |
| Width | 0.950 |
| Depth | 0.950 |
| Overall Length (mm) | 96.774 |
| Thread Length (In.) | 1.813 |
| Tap Chamfer | Bottoming |
| Tap Dimension Type | Inch |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Thread Type | UNF |
Straight Flute Tap, Thread Size 5/8 In.-18, UNF, Bottoming, Overall Length 3.81 in, High Speed Steel, Bright (Uncoated), Right Hand, Thread Length 1.36 in, 75 Percent Thread Drill Size 14.50 mm, Thread Limit H3, Class of Fit 2B-3B.
