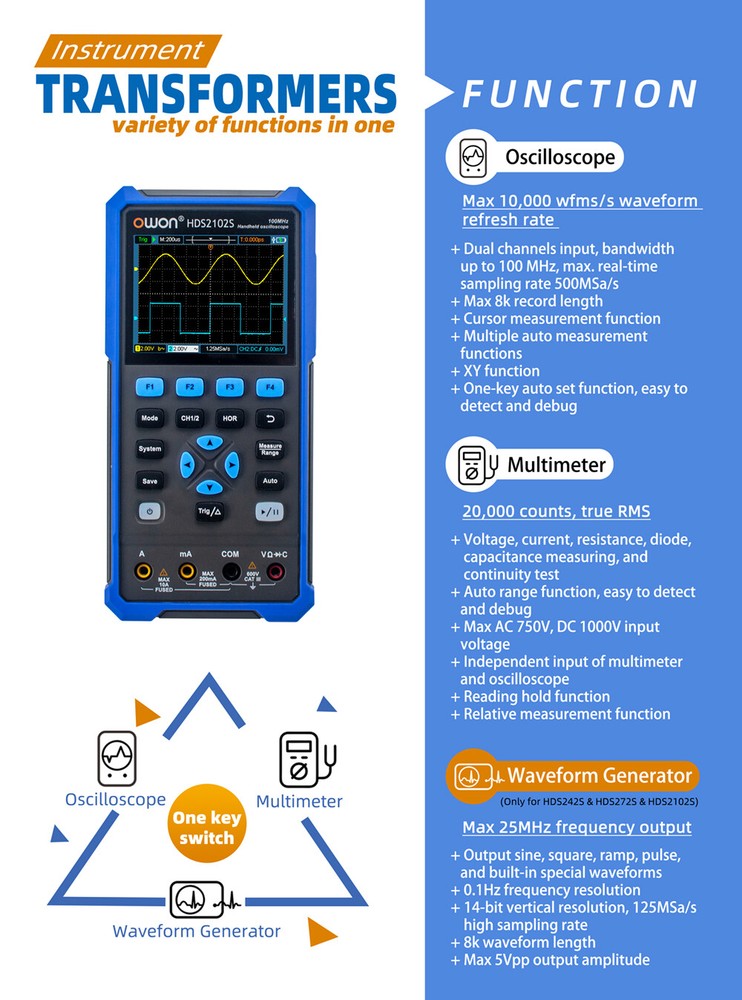

OWON HDS2102S Handheld Digital Oscilloscope 3.5″ LCD 100MHz 500MS/ 1CH Generator
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Model | Oscilloscope |
| Oscilloscope Type | Digital Oscilloscope |
| MPN | HDS2102S |
| Brand | OWON |
| Maximum Bandwidth | 100 MHz |
DetailsNote: the HDS2102S looks externally identical to the product shown in the images.The HDS2102S is a portable dual-channel oscilloscope that can also be used as a multimeter and a function generator. The meter sports a 3.5" high-contrast colour display suitable for outdoor use and it runs on a pair of 18650 batteries, good for up to 6 hours of continuous use. You can hook up the meter to a PC host with USB-C to use it with Owon's desktop software, control it via SCPI or to use it with a power bank. Compared to the Hantek 2000 series oscilloscopes, the Owon HDS200 series are equipped with a slightly larger screen and larger internal memory. Furthermore, this series has 20000 counts as opposed to Hantek's 4000 counts resolution.Signals can be recorded and stored internally. Its memory holds up to 8k data points. Waveforms can also be stored as image or CSV, to be exported via USB to a PC host.Besides being an oscilloscope, it independently acts as a fully featured 20 000 count True-RMS multimeter. It has the capability to measure voltage, current, resistance, capacitance, continuity and diodes. The readings will be displayed comfortably large on the display as can be seen in the demonstration video below. Similar to conventional multimeters, it has auto ranging. SpecificationsOscilloscope specificationsSample rate500 MSa/s (single channel) 250 MSa/s (dual channel)Memory depth8 kpts (single channel) 4 kpts (dual channel)Vertical resolution8 bitTrigger typesEdgeWaveform capture rate10 000 wfms/sRise time≤5 ns typ.Vertical scale10 mV/div - 10 V/divHorizontal scale2 ns/div - 1000 s/divMeasuring parameters (vertical)Vmax, Vmin, Vpp, Mean, AmplitudeMeasuring parameters (horizontal)Period, FreqMultimeter mode specificationsSpecificationsRangeAccuracy (smallest range)DC voltage0.01 mV - 1000 V±0.5% + 5AC voltage0.01 mV - 750 V±0.8% + 5DC current10 μA - 10 A±0.8% + 2AC current10 μA - 10 A±1% + 5Resistance0.01 Ω - 100 MΩ±0.8% + 3Capacitance1 pF - 2 mF±3% + 10Function generator mode specificationsChannels1Amplitude0.01 Vpp ~ 2.5 VppFrequency25 MHz (sine)Sample rate125 MSa/sVertical resolution14 bitsWaveform length8 kptsFrequency resolution0.1 HzWaveform typessine, square, ramp, pulse, sinc, bessely, besselj, stair up, stair down, stair up-down, att alt, amp altOther modesContinuity, diode testDisplay20,000 counts (multimeter mode) 3.5" colour LCD (320 x 240)Power supply2x 18650 battery (approx. 6 hours)ConnectivityUSB-CDimensions198 x 38 x 96 mm LxWxHWeight600 g (without batteries)For more information, please refer to the user guide which you can download below.AccessoriesThe HDS2102S comes by default with: 2x 18650 batteries USB cable Set of test leads Probe BNC - alligator clips cable Power adapter Carrying pouch
