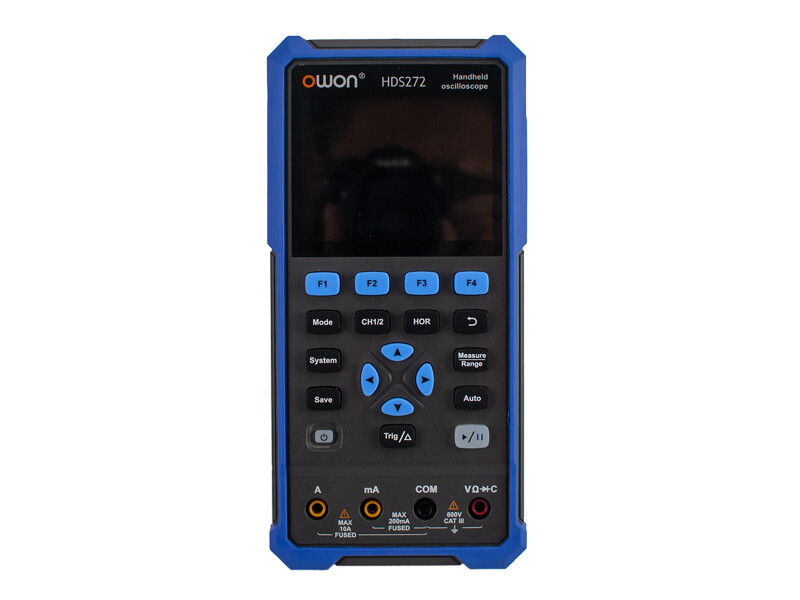

OWON HDS272 3.5″ 2CH Handheld Oscilloscope 70MHz Bandwidth 20000 Counts 0-2V
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Model | OWON HDS 272 |
| MPN | HDS272 |
| Brand | OWON |
| Maximum Bandwidth | 70 MHz |
OWON HDS272 3.5" LCD 2CH Handheld Oscilloscope 70MHz Bandwidth 20000 Counts Multiumeter OSC + DMM for Automobile Maintenance and Power DetectionFeatures: ●Oscilloscope + multimeter + waveform generator, multifunction in one●3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use●18650 lithium battery, comprehensive power consumption≤3W, can work continuously for about 6 hours●USB Type-C interface, support power bank, support PC software connection●Self-calibration function●SCPI supported, facilitate secondary development Specifications:Oscilloscopes ModelHDS242HDS272HDS242SHDS272SBandwidth 40MHz 70MHz 40MHz 70MHz Channels 2- CH Oscilloscope2-CH Oscilloscope+1-CH Generator Sample Rate 125MSa/s Acquisition Model Normal, Peak detectRecord Length8KDisplay3.5 -inch LCDWaveform Refresh Rate10,000 wfrms/sInput Coupling DC, AC, and Ground Input Impedance 1 MΩ+2%, in parallel with 1 6pF+10pF Probe Attenuation Factors 1X,10X,100X,1000X Max. input Voltage400V (DC+AC, PK PK, 1MΩ input impedance)(10:1 probe attenuation)Bandwidth Limit (typical) 20MHz Horizontal Scale 5ns/div - 500s/div, step by 1-2- 5 Vertical Sensitivity 10mV/div - 10V/div Vertical Resolution 8 bits Trigger Type Edge Trigger Modes Auto, Normal, single Automatic MeasurementFrequency, Period, Amplitude, Max, Min, Mean, PK-PK Cursor Measurement△V, △T, △T&△V between cursors Communication InterfaceUSB Type-C Multimeter (Standard) Max. Resolution 20,000 countsTesting Mode Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test Input Impedance 10MΩ Max Input VoltageAC 750V, DC 1000V Max Input Current DC: 10A AC: 10A Diode 0- 2V Waveform Generator (Only for HDS242S & HDS272S) Frequency Output Sine 0.1Hz - 25MHz Square 0.1Hz - 10MHz Ramp 0.1Hz - 1MHz Pulse 0.1Hz - 5MHz Arbitrary 0.1Hz - 5MHz Sampling Rate 125MSa/s Channel 1-CH Amplitude Range 20mVpp-5Vpp Waveform Length 8K Vertical Resolution 14bits Output Impedance 50Ω Package includes: 1 x Main device1 x Bag1 x Probe1 x Power Plug(EU type)1 x Probe Adjust1 x USB Cable2 x Multimeter Leads1 x Instructions1 x CD Rom1 x BNC to Alligator ClipDetails picture:
