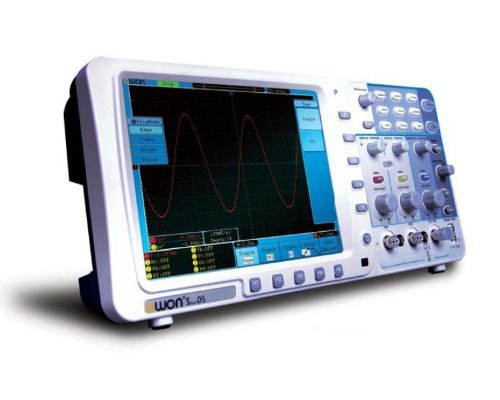

OWON SDS7102V 100Mhz Oscilloscope 1G/s 8″ LAN VGA free firmware upgrade + VGA
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Model | SDS7102V |
| MPN | SDS7102V |
| Brand | owon |
| Country/Region Of Manufacture | China |
Product Features:10M Record length1GS/s sample rateAutoScale function to simplify the operationSmart design body with easy portability8 inch display (800 x 600 pixels)Pass/Fail function Model SDS7102V Vertical SystemVertical resolution (A/D)8 bits Resolution (2 channels simultaneously )Vertical sensitivity2mV/div～10V/div(at input)Displacement ±1V(2mV～100mV),Analog Bandwidth 100MHz Single bandwidthFull bandwidthlow frequency≥ 5HzRise time (at input, typical) ≤3.5ns DC gain accuracy±3%DC accuracy(Average)Average﹥16: ±(3% rdg + 0.05 div) for △VMeasurementCursor measurement△V and △T between cursorsAutomatic measurementVpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -DutyWaveform Math＋, －, ×, / ,FFTWaveform storage15 waveformsLissajou’s figureBandwidthFull bandwidthPhase difference±3 degreesCommunication interfaceUSB, support USB flash disk storage, SVGATriggerTrigger level range±6 divisions from screen centerTrigger level accuracy±0.3divHorizontal Trigger displacementPre-trigger: 655 div,Post-trigger: 10 divTrigger Holdoff range100ns～10sEdge triggerRising、FallingPulse TriggerTrigger conditionPositive pulse：＞、＜、＝ negative pulse：＞、＜、＝Pulse width range24ns～10sVideo TriggerNTSC、PAL、SECAMSlope TriggerTrigger conditionPositive pulse：＞、＜、＝ negative pulse：＞、＜、＝Time setting24ns～10sAlternate TriggerEdge, Pulse, Video, SlopeWaveform recordWaveform quantity1～1000Interval time1ms～1000sDisplay8" color LCD,TFT display,800x600 pixels,65535 colorsPower Supply100～240VAC RMS, 50/60Hz, CAT IIPower consumption< 18WDimension Weight340mm(L)×155mm(H)×70mm(W) 1.8kg (without battery) What's in the Box?Owon SDS7102-V digital oscilloscope(2) passive voltage probesCD-ROM PC softwareUSB interface cablePower cordInstructions
