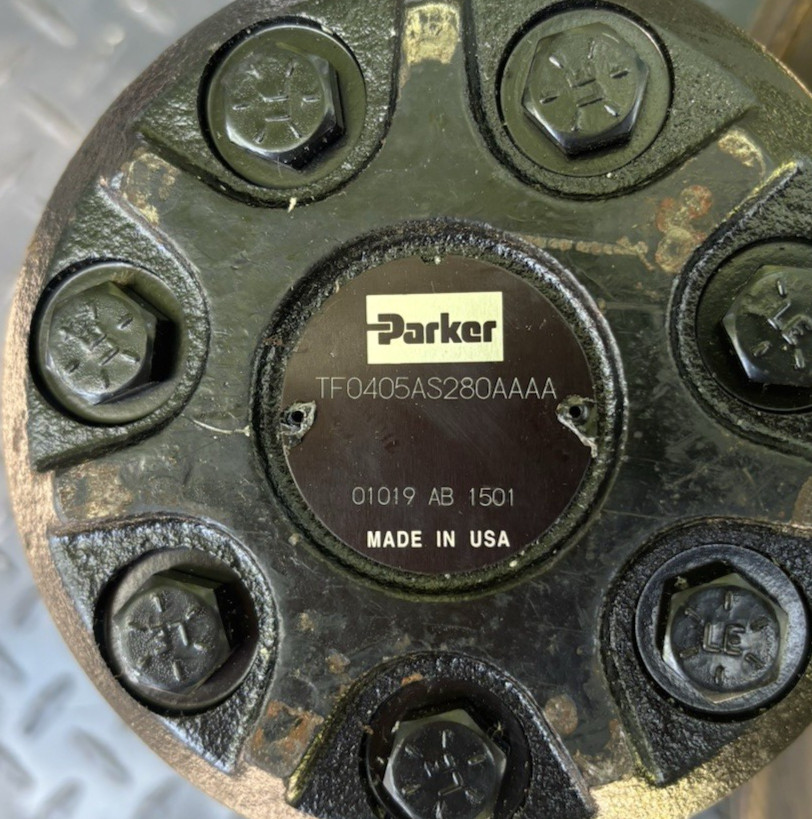

Parker Hannifin TF Series Hydraulic Motor TF0405AS280AAAA (SAE A 2-Bolt)

USD 592.00 USD

SKU: 0s95SKvS

Brand: Parker Hannifin

MPN: TF0405AS280AAAA

Condition: New – Open box

Tags: 1,850 PSI (128 bar) 1,948 in-lbs 1.53 inches (38.9 mm) 13 L/min 13-Tooth Splined shaft 130 °F 181 RPM - 224 RPM 2,750 PSI (190 bar). 20 GPM (76 L/min) 231 RPM 25 GPM (95 L/min). 29.7 HP (22.1 kW) 36.4 lbs 6,076 in-lbs (686 N-m) 8.87 in Parker Hannifin SAE A 2-Bolt TF0405AS280AAAA United States

Categories: Handpieces & Instruments

Specifications

Maximum Continuous Pressure	1,850 PSI (128 bar)
Maximum Intermittent Pressure	2,750 PSI (190 bar).
MPN	TF0405AS280AAAA
Maximum Intermittent Flow Rate	25 GPM (95 L/min).
Shaft Length	1.53 inches (38.9 mm)
Maximum No-Load RPM	231 RPM
Max. Oil Temp	130 °F
Shaft Type	13-Tooth Splined shaft
Mounting Type	SAE A 2-Bolt
Brand	Parker Hannifin
Maximum Continuous Flow Rate	20 GPM (76 L/min)
Torque At Maximum Pressure	1,948 in-lbs
Length	8.87 in
Rated Power	29.7 HP (22.1 kW)
Maximum Continuous Torque	6,076 in-lbs (686 N-m)
RPM At Maximum Torque	181 RPM - 224 RPM
Total Product Weight	36.4 lbs
Country Of Origin	United States

Part Number : TF0405AS280AAAA. PARKER Hydraulic Motor, TF Series, SAE A 2-Bolt, 24.7 cu. /rev., 749 RPM Max. Port Size & Type: 7/8-14 SAE straight thread O-ring ports. Mounting Style: Standard SAE "A" 2-Bolt pattern.
