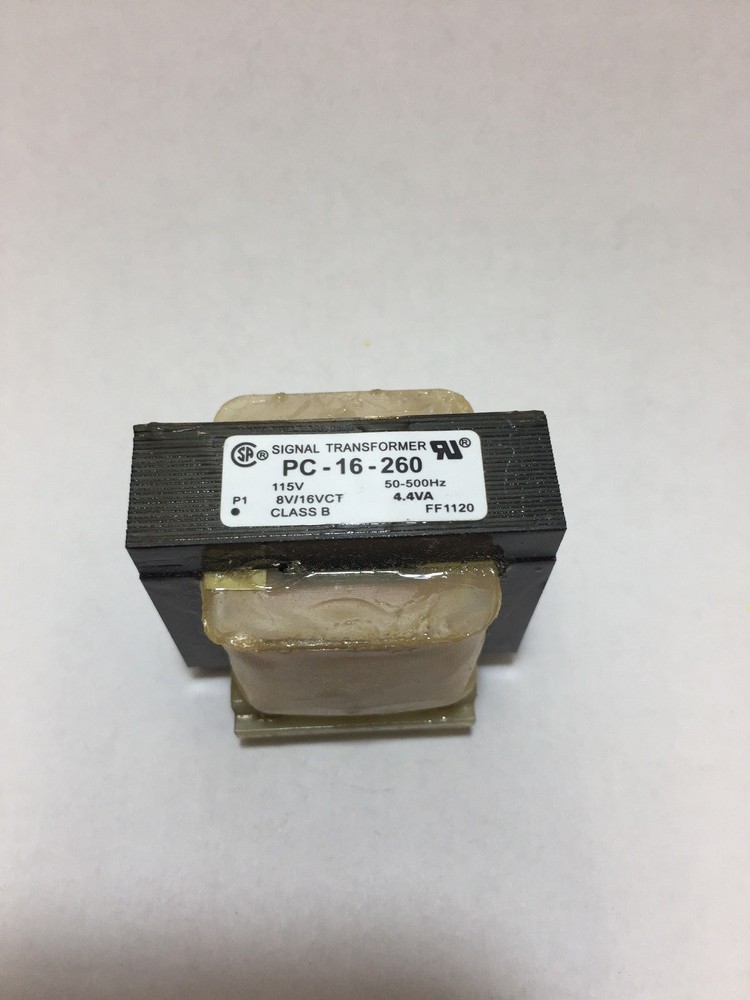

PC-16-260 TRANSFORMER SINGLE PRIMARY 115V 50-500Hz 8V/16VCT 4.4VA
USD 5.25 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Minimum Operating Frequency (Nominal) | 500 Hz |
| Maximum Operating Frequency (Nominal) | 500 Hz |
| Mounting Style | Through Hole |
| Nominal Power Rating | 16 VA |
| Model | PC-16-260 |
| MPN | PC-16-260 |
| Conversion Function | Step-down |
| Nominal Current Rating | 260ma |
| Brand | Signal Transformer Inc. |
| Voltage Rating | 115 |
Signal Transformer Inc. Miniature Low Power Transformer XFRMR LAMINATED 4.4VA Primary Winding - Single Secondary Winding - Dual Mounting - THRU HOLE Frequency - (Hz)- 50 - 500 Hz Input (V) - 115V Height - 34.92mm Length - 41.33mm Width - 31.8mm Output Series - 16v / 260ma Output Parallel- 8v / 520ma Weight (lbs) - .313 lbs / 141.97g 170827-5
