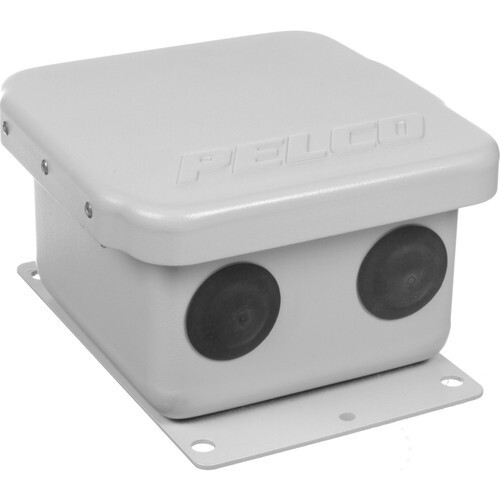

Pelco WCS1-4 Outdoor Single Output 4/26/28 VAC Fused Power Supply, 100-240VAC
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Brand | Pelco |
| Type | Other |
| Model | WCS1-4 |
| MPN | WCS1-4 |
The Pelco WCS1-4 is a single-output power supply for use with standard CCD cameras as well as Pelco's indoor or outdoor Spectra and Esprit pan-and-tilt systems. This model outputs 4, 26 or 28 VAC power, with the extra voltage above 24 VAC provided as a way to compensate for power loss from long cable runs. Input voltage is selectable between 100, 120 or 240 VAC. The maximum current capacity for this model is 4 A (100 VA), with a fuse system providing protection from power overloads. While this method requires the replacement of fuses after each occurrence, by acting faster and being more precise, a fuse system provides a higher degree of overload protection as compared to a circuit-breaker system. This unit is suitable for outdoor installation and can be secured by an optional padlock. Single power supply for standard CCD cameras as well as Pelco's Spectra and Esprit pan-and-tilt dome systemsWeather-proof design for outdoor installation (NEMA Type 4X and IP66)120 VAC or 240 VAC selectable input28 VAC Power output for long cable runsAC Power indicator with power On/Off switchFuse circuit protectionPadlockable
