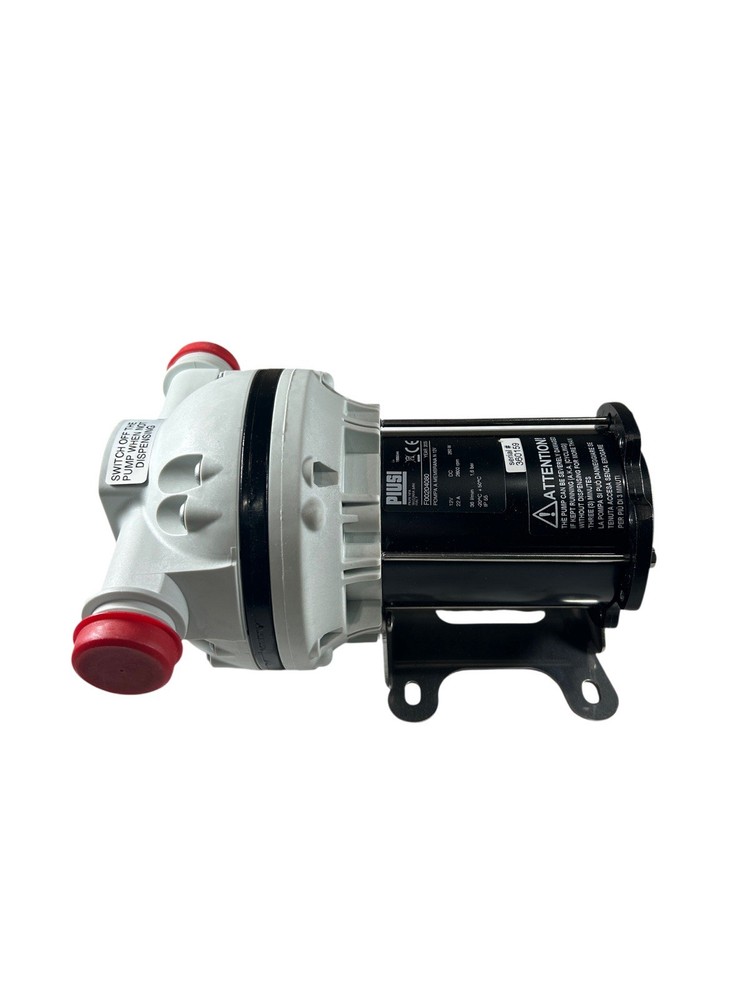

Piusi F00204080 1″ BSP 12VDC 1/10HP 9 GPM 22A 2800 RPM Electric Drum Pump

USD 307.56 USD

SKU: W2Zp3UjE

Brand: Piusi

MPN: F00204080

Condition: New

Tags: 1 CPS 1 in 1/10HP 104 °F 12 °F 12V DC 14 in 22 PSI 22241 22A 23.2 PSI 275 gal, 330 gal 2800 rpm 45 ft 72 in 75 dB 9 gpm Antifreeze Coolant; DEF BSP Corded Electric Diaphragm F00204080 Foot Hose barb ISO 22241 Italy Nitrile Nylon PIUSI Tote Unit Yes

Categories: Fuel & Energy

Specifications

Max Outlet Pressure	22 PSI
Pump Technology	Diaphragm
Power Source	Corded Electric
Housing Material	Nylon
Maximum Flow Rate	9 gpm
HP	1/10HP
MPN	F00204080
Max Viscosity	1 CPS
Pump Connection OD	1 in
Full Load Current	22A
Unit Type	Unit
Discharge Connection Type	Hose Barb
Mount Type	Foot
Inlet Diameter	1 in
Max Fluid Temp	104 °F
Includes Suction Tube	Yes
Seal Material	Nitrile
Min Fluid Temp	12 °F
Pump Connection Type	BSP
Self-Priming	Yes
Outlet Diameter	1 in
Max Head Pressure	23.2 PSI
Nominal Voltage	12V DC
Chemical Compatibility	Antifreeze Coolant; DEF
Overall Length	14 in
Standards	ISO 22241
Rated Voltage	12V DC
Brand	Piusi
Noise Level	75 dB
Motor Speed	2800 RPM
Cord Length	72 in
Pump Connection ID	1 in
For Container Size	275 gal, 330 gal
Max Head	45 ft
Country Of Origin	Italy
For Container Type	Tote
