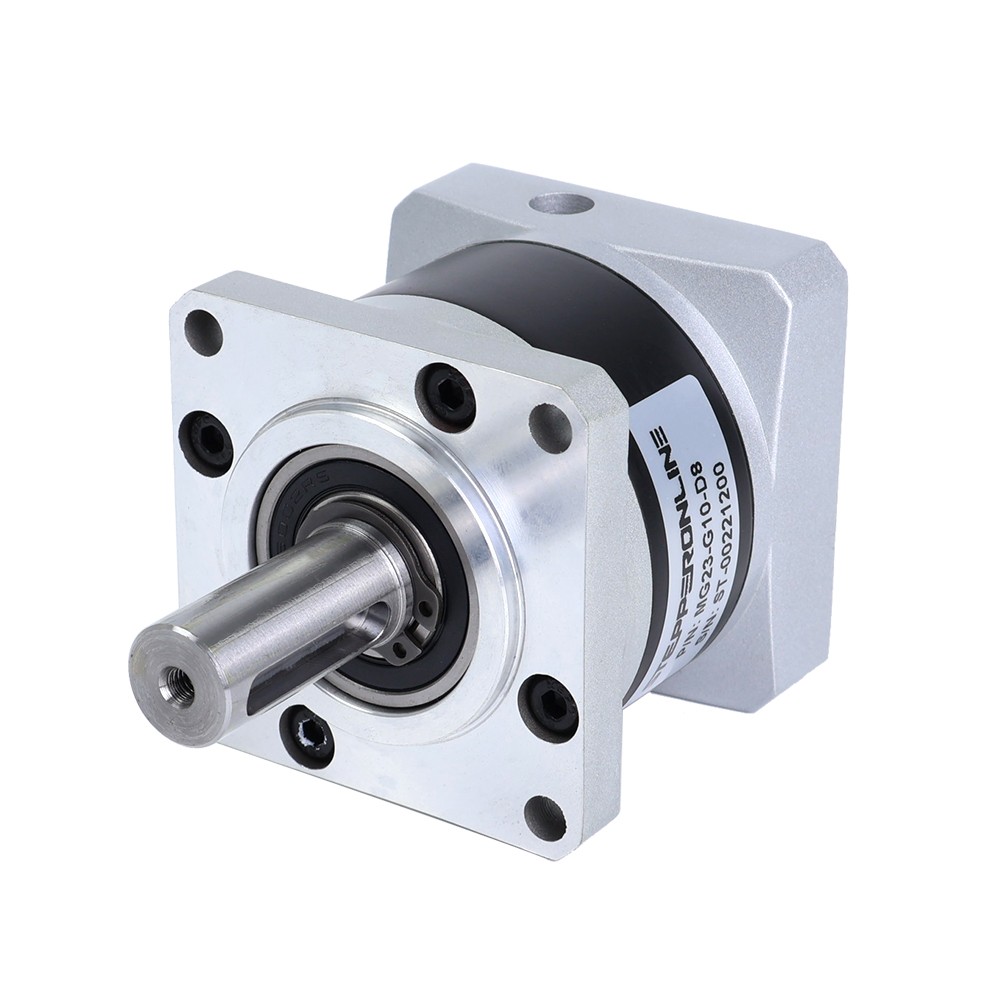

Planetary Gearbox 10:1 Backlash 30arc-min for 8mm Shaft Nema 23 Stepper Motor

USD 34.10 USD

SKU: 5kFlKPlQ

Brand: STEPPERONLINE

MPN: MG23-G10-D8

GTIN: 742803047164

Condition: New

Tags: 0.13kg·cm² 0742803047164 10:1 30 min 34mm 55.5mm 742803047164 8.14mm 8mm China IP54 Key way MG23-G10-D8 Powder Metallurgy Spur Planetary STEPPERONLINE Φ14mm

Categories: HVAC & Refrigeration: Parts & Accessories

Specifications

Country Of Origin	China
Brand	STEPPERONLINE
Nominal Ratio	10:1
MPN	MG23-G10-D8
UPC	742803047164
EAN	0742803047164
Output Shaft Diameter	Φ14mm
Output Shaft Type	Key way
Rotor Inertia	0.13kg·cm²
Gearbox Length	55.5mm
Gearbox Type	Spur Planetary
Input Shaft Length	8-14mm
Output Shaft Length	34mm
Waterproof Rating	IP54
Input Shaft Diameter :	8mm
Gear Material:	Powder Metallurgy

This high-precision planetary gearbox is belong to MG series gearbox, it with gear ratio 10:1 and a maximum 30arc-min backlash. Backlash at No-load: <=30arcmin. Gearbox Type: Planetary. Note : When the rated input speed of the gearbox is 1000RPM, the noise value is <=55dB; when the rated input speed is 3000RPM, the noise value is <=65dB.
