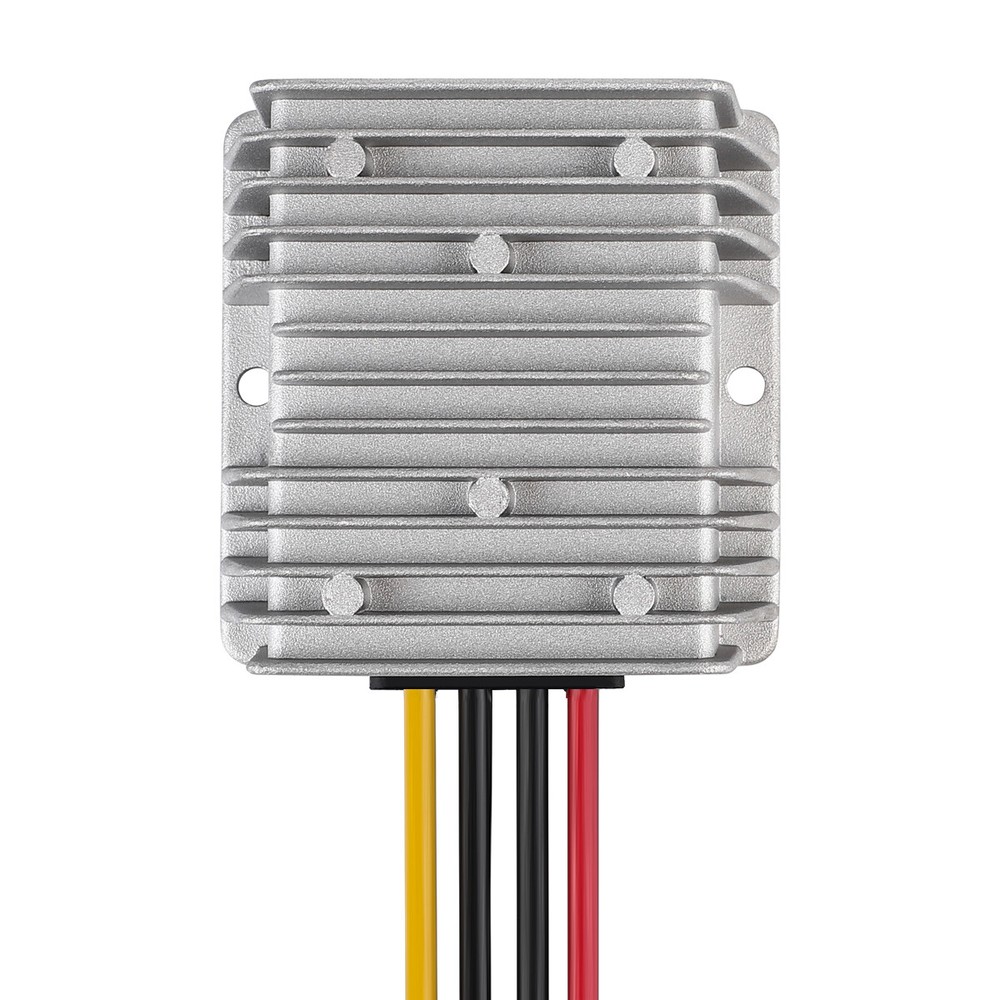

Power Regulater DC 8V-40V to 12V 6A 72W Automatic Step Down Buck Boost Converter
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | Stand Alone |
| Nominal Voltage Rating (DC) | 8V-40V |
| Nominal Current Rating | 6 A |
| Current Conversion | DC to DC |
| Color | Silver |
| Nominal Power Rating | 72 W |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Installation Area | Indoor/Outdoor |
| Brand | Supernight |
| Output Voltage Rating (DC) | 12 V |
| Inrush Current Rating | 6 A |
| Maximum Operating Temperature | 80 °C (176 °F) |
| Protection Properties | Low Voltage Protection |
Product DescriptionFeaturesNon-Isolated ModuleInput Voltage: 12V/24V/36V nominal, Input range: 8V-40VInput Current: 10A (max) ; No-load input current: ≤10mAOutput Voltage: DC 12V ±2% ; Output Current: 6ARipple Wave: 50MvStarting Delay time: ≤ 2SEfficiency: ≥95%Operating Temperature:-40 ~ 80℃Net Weight: 250g / 8.8ozPackage Include1x Buck Boost Converter 8V-40V to 12V 6A 72WIP68 Waterproof ModuleBetter Heat DissipationStrict glue pouring process is waterproof, moisture-proof, seismic and adapt to a variety of harsh environment.Aluminium shell improve better heat dissipation effect and sturdiness to extend service life.SMT ProcessFR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.Notes: It's normal that the case is hot when converter inside temp is over 113℉, converter will protect itself when inside temp is over 185℉.Synchronous Rectification TechnologyThe synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiencyAssembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protectionCompact aluminium shell with epoxy potting is anti-shock, damp-proof ,anti-dust protections and better heat dissipationWide ApplicationsThese compact size dc voltage reducer converters are high reliability power transformers. They can work safely and reliability within temperature range -40°C~80°C.Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect.
