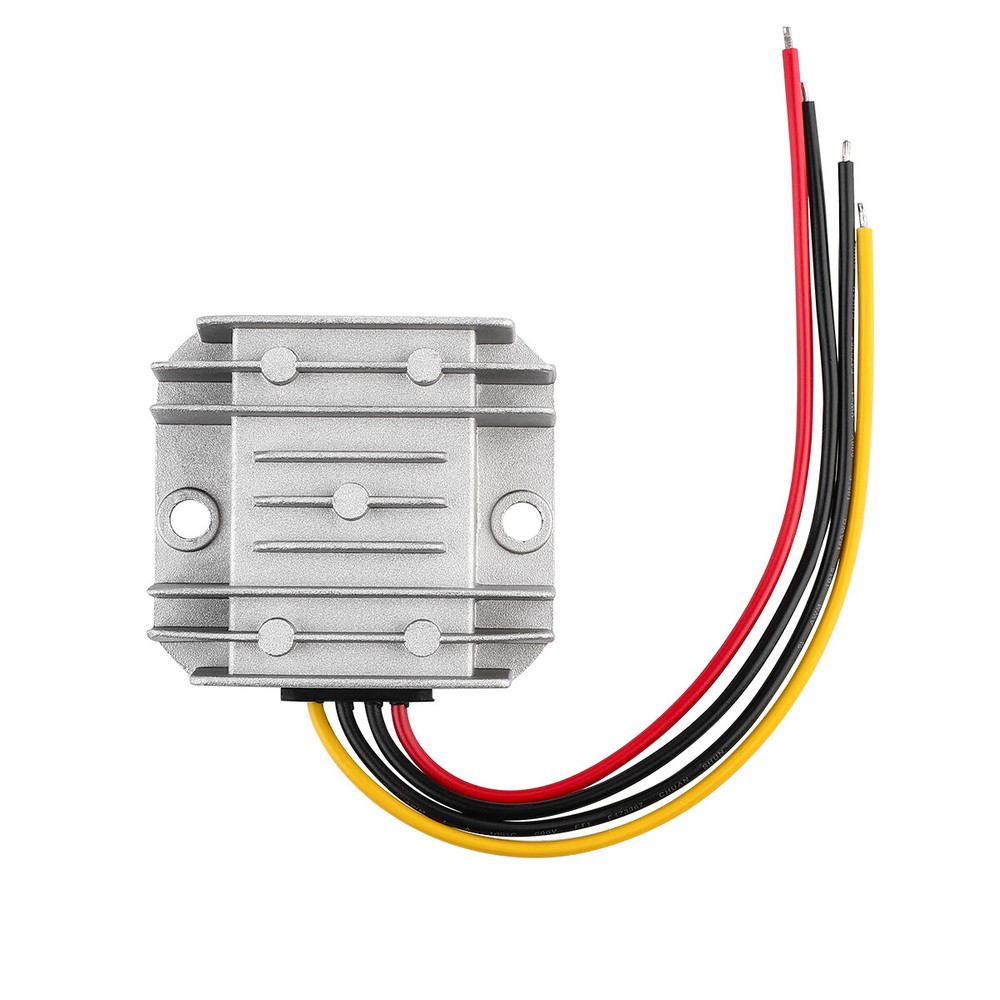

Power Regulator DC 24V to 12V 5A 60W Step Down Buck Voltage Converter Waterproof
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Nominal Voltage Rating (DC) | 24 V |
| Mounting Style | Stand Alone |
| Nominal Current Rating | 5 A |
| Current Conversion | DC to DC |
| Color | Silver |
| Nominal Power Rating | 60 W |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Installation Area | Indoor/Outdoor |
| Brand | Supernight |
| Output Voltage Rating (DC) | 12 V |
| Inrush Current Rating | 5 A |
| Features | Space Saving Design |
| Maximum Operating Temperature | 80 °C (176 °F) |
| Protection Properties | Low Voltage Protection |
About this itemInput Voltage: 24V nominal, Input Current: 10A (max) ; Output Voltage: DC 12V 5A 60WAdopt Synchronous Rectification Technology to improve conversion efficiency, Maximum Efficiency:≥95%; Ripple Wave: 50Mv; Starting delay time:≤2SAssembled with smart chip, features Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protectionCompact aluminium shell with epoxy potting, 100% waterproof, anti-dust, anti-shock protection and better heat dissipationThese voltage converters are excellent power transformers, can work safely and reliable in -40°C~80°C range. And all converters are offered 1 year replacement assurance Product DescriptionThese dc voltage reducer converters are high reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, high reliability. We provide different power voltage converters for all kinds of application devices.Compact SizeCompact aluminium shell with epoxy potting is anti-shock, damp-proof ,anti-dust protections and better heat dissipationIntelligent ProtectionAssembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protectionSynchronous Rectification TechnologyThe synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiencyFeaturesNon-Isolated ModuleInput Voltage: 24V nominal; Input range: 20V to 30VInput Current: 10A (max) ; No-load input current: ≤10mAOutput Voltage: DC 12V ±2% ; Output Current: 5ARipple Wave: 50MvStarting Delay time: ≤ 2SEfficiency: ≥95%Operating Temperature:-40 ~ 80℃Net Weight: 110g / 3.8ozPackage Include1x Voltage Reducer 24V to 12V 5A 60WIP68 Waterproof ModuleBetter Heat DissipationStrict glue pouring process is waterproof, moisture-proof, seismic and adapt to a variety of harsh environment.Aluminium shell improve better heat dissipation effect and sturdiness to extend service life.SMT ProcessFR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.Notes: It's normal that the case is hot when converter inside temp is over 113℉, converter will protect itself when inside temp is over 185℉.Wide ApplicationsThese compact size dc voltage reducer converters are high reliability power transformers. They can work safely and reliability within temperature range -40°C~80°C.Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect.
