PTO DRIVELINE for VICON DISC MOWER CM167 CM1700 CM216 CM217 CM2200 CM240 CS52511
Specifications
| All Returns Accepted | ReturnsNotAccepted |
| Type | Disc Mower |
| MPN | CS52511 |
| Brand | aftermarket |

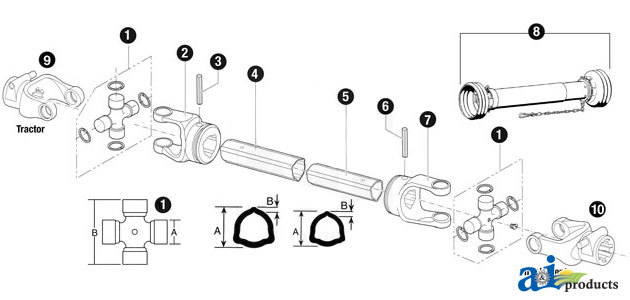

Disc Mower Driveline with quick disconnect yokes, size 5. Driveline rated as a category 4 (47 hp @ 540 rpm), 100 series. Driveline C-to-C length: 25" (635 mm), Max C-to-C length: 35" (900 mm), Total collapsed length: 33" (850 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 spline. Fits Agriquip, Bush Hog, Claas, Fahr, Fella, Fort, and John Deere Disc Mowers.• It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.C to C Max 900 mm/ 35"C to C Min 635 mm/ 25"Category 4 (47HP)Implement 1 3/8" -6Series 100Size 5Total Collapsed Length 850 mm/ 33"Tractor 1 3/8" -6 mega-cross:(1 to 2 of 2)Replaces:ECC5251EDCORA-DT435921NKUHN item components:(1 to 8 of 8)Item NumberDescriptionQtyA-BP125101500-AOuter Tube1A-BP204056860-CSOuter Tube Yoke1A-BP204056861-CSInner Tube Yoke1A-BP41205-ACross & Bearing Kit2A-BP507050351-ATractor Yoke, Splined 1 3/8" - 6 Spline w/ QDP2A-P10X60Roll Pin, 10 MM x 60 MM, 2 pack1A-P10X70Roll Pin, 10 MM x 70 MM, 2 pack1A-SK2CShield & Bearing Kit; CS5-CS81 sections and models:(1 to 20 of 55)next>>Driveline (by application) > Driveline AssemblyAgriquip DISC MOWER: CM245Agriquip DISC MOWER: CM270Bush Hog DISC MOWER: DM7Bush Hog DISC MOWER: DM70Bush Hog DISC MOWER: DM8Bush Hog DISC MOWER: DM80Bush Hog DISC MOWER: DM9Bush Hog DISC MOWER: DM90Claas DISC MOWER: CORTO 240DClaas DISC MOWER: CORTO 280DFahr DISC MOWER: SM2.21Fahr DISC MOWER: SM2.24Fella DISC MOWER: SM240Fort DISC MOWER: F25/5Fort DISC MOWER: F25/6Fort DISC MOWER: F25/7John Deere FLAIL MOWER: 25AJohn Deere FLAIL MOWER: 360John Deere FLAIL MOWER: 370John Deere FLAIL MOWER: 390
