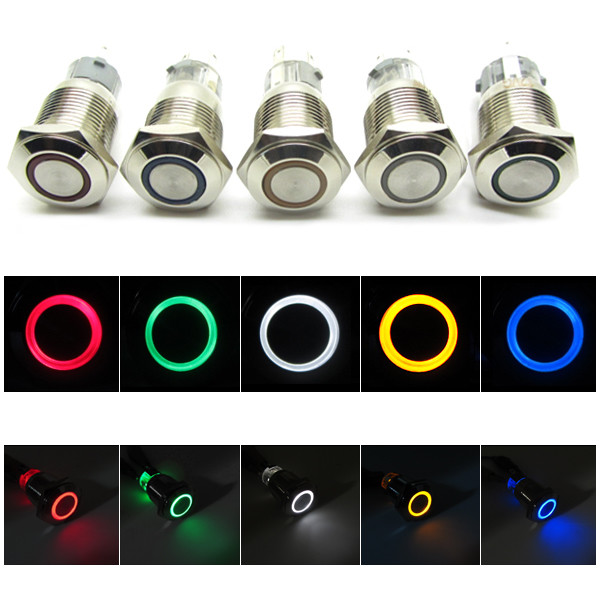

Push Button Switch Ring LED Light Momentary Latching Waterproof 16mm 12V 24V 220
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| MPN | LA128-16A |
| Switch Style | Push Button/Retractive |
| Suitable For | Exterior |
| Maximum Operating Temperature | 55°C |
| Current Type | AC/DC |
| Termination Type | Solder Lug |
| Contact Material | Silver Alloy |
| Features | Explosion Proof |
| Finish | Nickel Plating |
| Minimum Operating Temperature | -20°C |
| Current Rating | 0-5A |
| Button Type | Flush |
| Brand | Unbranded/Generic |
| Operation Method | On/Off |
| Type | Momentary Switch |
| Bulb Compatibility | LED |
| IP Rating | IP65 |
| Button Shape | Round |
| Panel Cutout Shape | Circular |
| Application | Automotive |
Specification Action Type:Momentary/Latching(please select) LED Light Color(pushbutton color):Red/Green/Blue/Yellow/White (please select) LED Light Working Voltage:DC12V/DC24V/AC220V(please select) Switch ON/OFF Capacity:0-250V 0-5A(AC/DC) Contact Form:SPDT Contact Type:1 NO + 1 NC Contact Material:Silver alloy Contact Resistance:less than 50m ohm Insulation Resistance:more than 1000M ohm Mechanical Life:more than 5,000,000times Electrical Life:more than 50,000times Protection Rated:IP67 Shell Color:Silver Shell Material:Copper nickel plating Base Material:Plastic Mounting Cut Hole:16mm(0.63") Head Diameter:18mm(0.71") Total Height:36.5mm(1.44") Mounting Panel Thickness:max.10mm(0.4") Action Type: Momentary:pushing and holding to ON,released to OFF Latching(maitained):push to ON and LOCKED,push again to reset Package contents / lot : 1 x Switch 1 x Screw Nut 1 x Seal Washer Shipping Item will be shipped to worldwide by air-mail to your eBay registered address. If you need to change your address. please make an annotation or leave us a message. We usually ship the order within 1 business days( excluding Saturday and Sunday) .It takes about 11-23 business days for you to get the package. If you want express shipping ,please contact us. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
