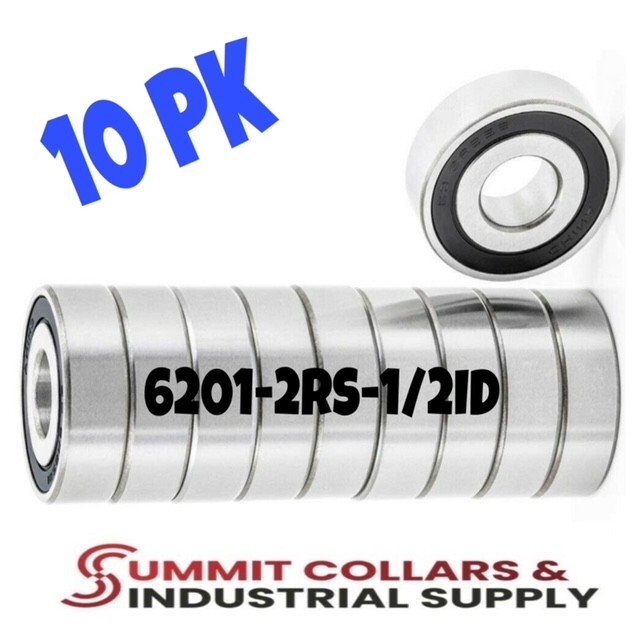

[Qty 10] New 6201-2RS-1/2 Deep Groove Radial Ball Bearing [1/2in x 32mm x 10mm]

USD 16.89 USD

SKU: x4rw0WkE

Condition: New

Tags: 0.0236 in 0.6 MM 10 MM / 0.39 IN 12.7 MM / 1/2 IN 120° to 248° 18.5 MM 2-1/2 in 26000 RPM 27.95 MM 3047 lbs 3050 N 32 MM / 1.26IN 5.953 MM 6201-2RS-1/2 6800 N 6810 7-Counts Chevron SRI-2 Grease China Chrome Steel SAE-52100 ISO Normal/ABEC1 ReturnsNotAccepted Straight SUMMIT COLLARS Two Contact Seals

Categories: Handpieces & Instruments

Specifications

All Returns Accepted	ReturnsNotAccepted
Ball Qty	7-Counts
MPN	6201-2RS-1/2
Dynamic Load Capacity	6810
Dynamic Load Rating (Cr)	6800 N
Static Load Rating (Cor)	3050 N
Static Load Capacity	3047 lbs
Material:	Chrome Steel SAE-52100
Radius (min) (rs)	0.6 MM
[W	10 MM / 0.39 IN
5.953 MM	27.95 MM
Maximum RPM	26000 RPM
Ball Dia (Dw)	5.953 MM
Lubrications	Chevron SRI-2 Grease
Operating Temperature Range	120° to 248°
Fillet Radius	0.0236 in
Brand	SUMMIT COLLARS
[OD	32 MM / 1.26IN
Precision Class	ISO Normal/ABEC1
[ID	12.7 MM / 1/2 IN
Model	6201-2RS-1/2
Max. Shaft Shoulder Dia. Inner (Ui)	18.5 MM
Closure Type	Two Contact Seals
Country/Region Of Manufacture	China
Bore	Straight

10 bearings 6201-2RS-1/2 deep groove radial ball bearings with a 1/2 inch bore, 32mm outer diameter, and 10mm width. They have a dynamic load capacity of 6810 and a static load capacity of 3047 lbs. The bearings are made of chrome steel SAE-52100 and have a Chevron SRI-2 grease lubrication. They are single row non-fill slot bearings with two contact seals and a maximum RPM of 26000.

[Qty 10] New 6201-2RS-1/2 Deep Groove Radial Ball Bearing [1/2in x 32mm x 10mm]
