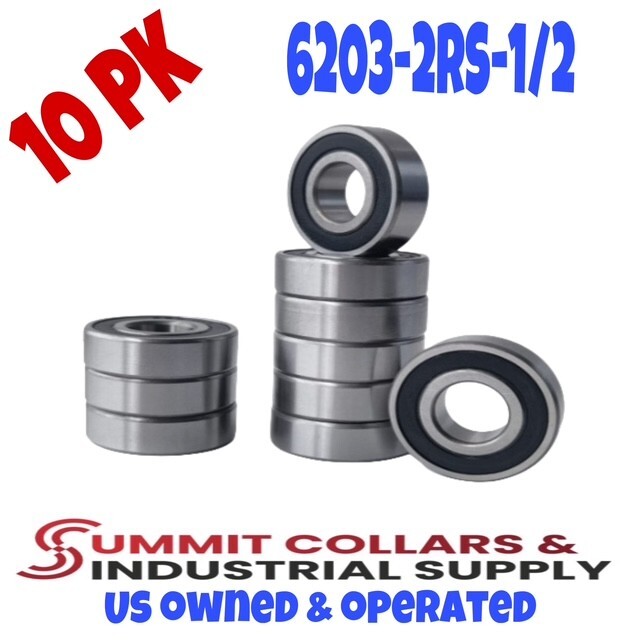

[Qty.10 New 6203-2RS-1/2 Deep Groove Radial Ball Bearing [1/2in x 40mm x 12mm]

USD 22.95 USD

SKU: 0Z7nOXku

Brand: Summit

MPN: 6203-2RS-1/2

Condition: New

Tags: 0.0236 in 0.60 MM 1/2 in 10" x 12-1/2" 12 mm 120° to 248° 20,000 RPM 24.9 mm 35.8 MM 40 mm 4786 lbs 4800 N 6.747 MM 6200-Series 6203-2RS-1/2 8 Count 9550 N 9577 ABEC 1 Chevron SRI-2 Grease China ISO Normal/ABEC1 Straight Summit Two Contact Seals

Categories: Handpieces & Instruments

Specifications

MPN	6203-2RS-1/2
Dynamic Load Capacity	9577
Dynamic Load Rating (Cr)	9550 N
Ball Quantity	8-Count
Static Load Rating (Cor)	4800 N
Static Load Capacity	4786 lbs
Radius (min) (rs)	0.60 MM
[W	12 MM
Precision Rating	ABEC 1
Maximum RPM	20000 RPM
Ball Dia (Dw)	6.747 MM
Lubrications	Chevron SRI-2 Grease
Operating Temperature Range	120° to 248°
Min. Housing Shoulder Dia., Outer (Uo)	35.8 MM
Fillet Radius	0.0236 in
Brand	Summit
[OD	40 MM
Series	6200-Series
Precision Class	ISO Normal/ABEC1
[ID	1/2 IN
Max. Shaft Shoulder Dia. Inner (Ui)	24.9 mm
Closure Type	Two Contact Seals
Country/Region Of Manufacture	China
Bore	Straight

LUBRICATION CHEVRON SRI-2 GREASE 6201-2RS 1/2. COUNTRY OR ORIGIN CHINA. SPEED LIMIT 21,000 RPM. DYNAMIC LOAD 1,370 LBF. STATIC LOAD 615LBF 6201.2RSR/12.7.
