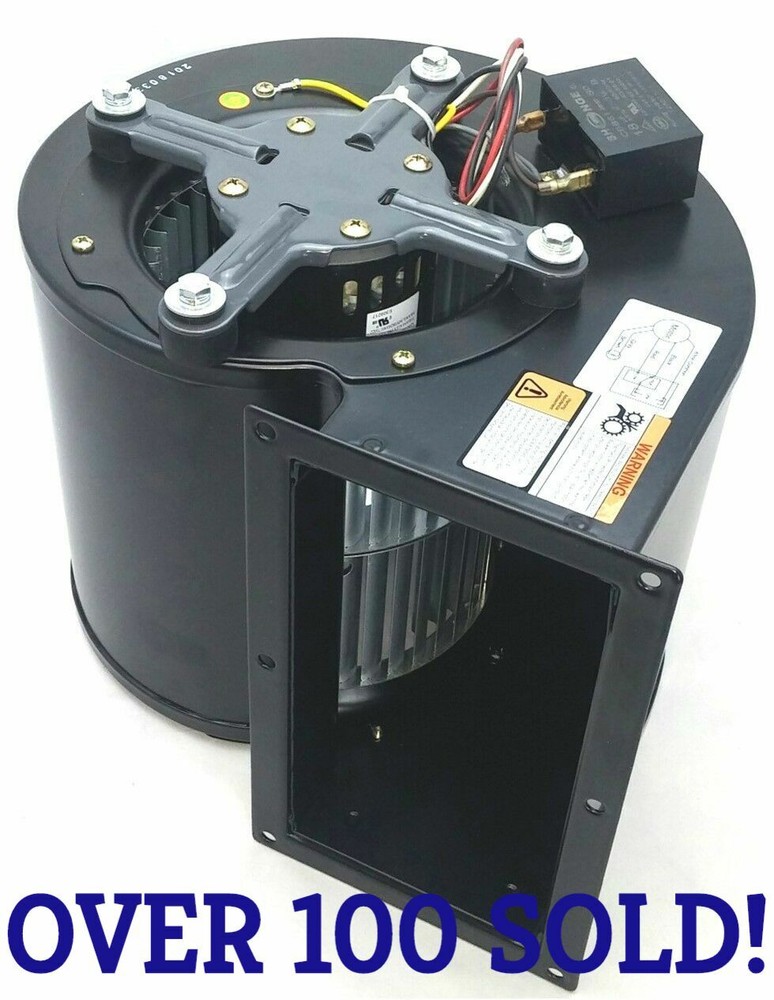

REPLACEMENT DAYTON 1TDT8 Blower, 797/549 cfm, 115V 3.30/2.20A SAME DAY SHIPPING
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Dimension E (In.) | 11-1/8 |
| Dimension F (In.) | 3-5/16 |
| Overall Height (In.) | 11-1/8 |
| Overall Width (In.) | 9-1/4 |
| Drive Type | Direct |
| Dimension A (In.) | 10-7/16 |
| Hz | 50/60 |
| Wheel Dia. (In.) | 6-5/16 |
| MPN | 1TDT8 |
| Overall Depth | 10-7/16" |
| Overall Height | 11-1/8" |
| Overall Width | 9-1/4" |
| Brand | DAYTON NBK |
| Bearing Type | Ball |
| Mounting | All Position |
| UPC | Does not apply |
| Housing Finish | Enamel |
| Housing Material | Rolled Steel |
| Dimension B (In.) | 11-3/4 |
| Dimension C (In.) | 9-1/4 |
| Dimension D (In.) | 8-3/16 |
| Voltage | 115 |
Technical Specs Item OEM Blower Blower Outlet Shape Rectangular With Flange Yes Blower Wheel Diameter 6-5/16" Blower Wheel Width 6-1/2" Blower Item OEM Specialty Blower Blower Voltage 115VAC Blower Motor Type Permanent Split Capacitor Blower Thermal Protection Auto Blower Conduit Box No CFM @ 0.000-In. SP 797/549 CFM @ 0.100-In. SP 780/546 CFM @ 0.200-In. SP 730/536 CFM @ 0.300-In. SP 720/532 CFM @ 0.400-In. SP 680/518 CFM @ 0.500-In. SP 640/504 CFM @ 0.600-In. SP 620/490 CFM @ 0.700-In. SP 560/474 CFM @ 0.800-In. SP 500/392 Hz 50/60 Phase 1 Full Load Amps 3.30/2.20 RPM 1360/970 Bearing Type Ball Motor Enclosure Open Motor Insulation Class B Lead Length 13" Max. Ambient Temp. 104 Degrees F Max. Inlet Temp. 104 Degrees F Number of Speeds 2 Inlet Dia. 5-5/16" Outlet Height 4-1/4" Outlet Width 8-1/16" Overall Height 11-1/8" Overall Width 9-1/4" Overall Depth 10-7/16" Wheel Type Forward Curve Drive Type Direct Mounting Position All Position Housing Finish Enamel Housing Material Rolled Steel Housing Color Gray Agency Compliance UL Recognized US and Canada (E47479), CE Replaces 5C508 Includes Discharge Mounting Flange SAME DAY SHIPPING ON ORDERS PLACE BEFORE 2:00PM EASTERN TIME MANUFACTURE BY NBK 30202
