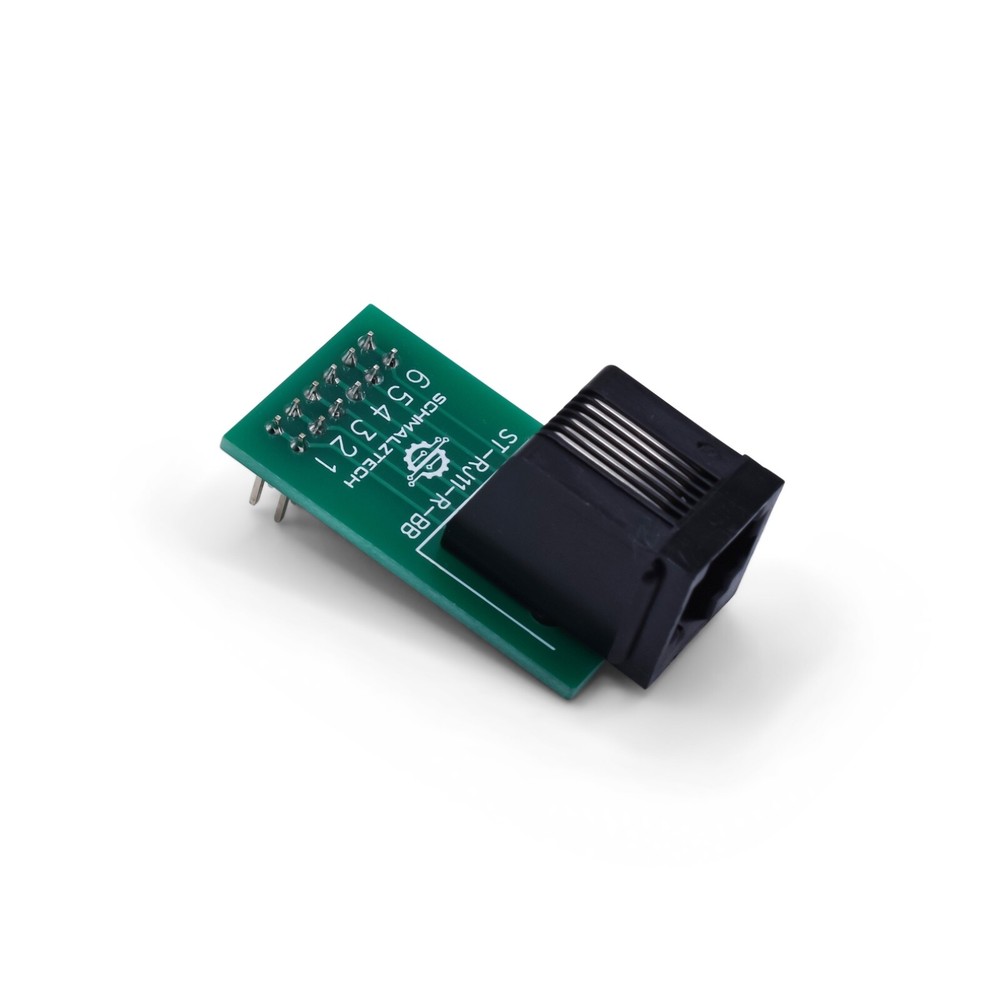

RJ11 6P6C Phone Jack Screw Terminal Breadboard Breakout ST-RJ11-R-BB
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Mounting Style | PCB Mount |
| Brand | SchmalzTech |
| PCB Type | Double-Sided PCB |
| Type | RJ11 Breakout |
| Material | FR-4 |
| MPN | ST-RJ11-R-BB |
| Item Length | 1.58 in |
| Item Width | 0.8 in |
SchmalzTech, LLC ST-RJ11-R-BB RJ11 Breadboard Breakout Breaks out all 6 contactsPin headers for easy breadboard connectionEasy access for probing and debuggingDual headers for increased stability Specifications Pin Header Size.025" x .025" Pin Header Pitch0.1"Connector6P6C PCB Surface FinishLF HASL Temperature Rating-15°C to +70°C This RJ11 breadboard breakout provides a quick and easy method of accessing all the contacts of a 6P6C connector. Each of the 6 connections are brought out to a pair of pin headers that can connect directly to a standard breadboard. This board has two rows of 0.1" male pin headers to create a more stable connection to the breadboard. By providing a second row of headers the breakout board is less likely to work loose from the breadboard and can better support the weight of a connected cable. Mechanical Drawings Electrical Connections Each pin of the RJ11 connector is electrically connected to a pair of pin headers. Custom Designs Can't find what you need? We can design and produce a custom board to fit your exact needs. Please reach out to us for additional information and pricing. © 2024 SchmalzTech, LLC
