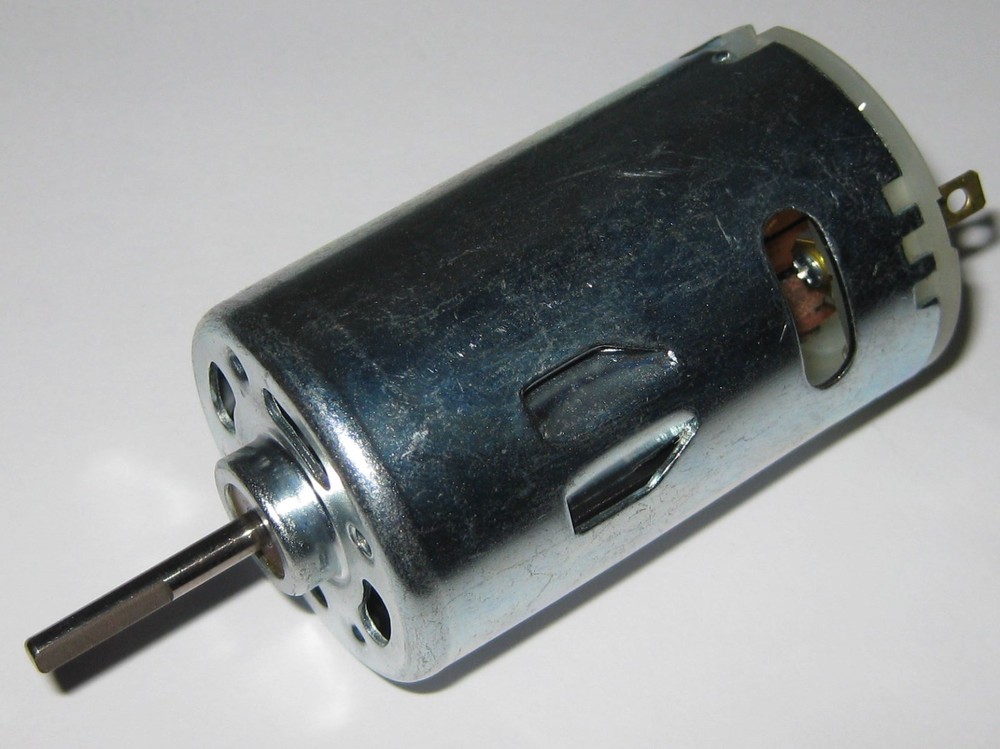

RS-550 Motor – 12 VDC – 20000 RPM – High Speed 550 Hobby Motor w/ Long D Shaft
USD 13.95 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| MPN | RS-550 |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | "D" Profile |
| Nominal Rated Input Voltage | 12 V |
| Model | RS-550 |
| Reversible/Non-Reversible | Reversible |
| Shaft Diameter | 3.17 mm |
| Base RPM | 20000 RPM |
| Brand | Unbranded/Generic |
| Type | Motor |
RS-550 Motor - 12 VDC - 20000 RPM - High Speed 550 Hobby Motor w/ Long D Shaft Electric DC motor Model: RS-550 Nominal voltage: 12 V DC Operating voltage range: 3 - 12 V DC No load speed at 12 VDC: 20,000 RPM No load current: 1.55 A Stall current: 30 A D-type shaft dimensions: 20 mm Long x 3.17 mm Diameter Dimensions (not including shaft): 57 mm Long x 36 mm Diameter 2 solder terminals for easy power connection Features 2 threaded mounting holes on 25 mm centers (JIS M3x0.5) Weight: 6.6 oz. (187 g)
