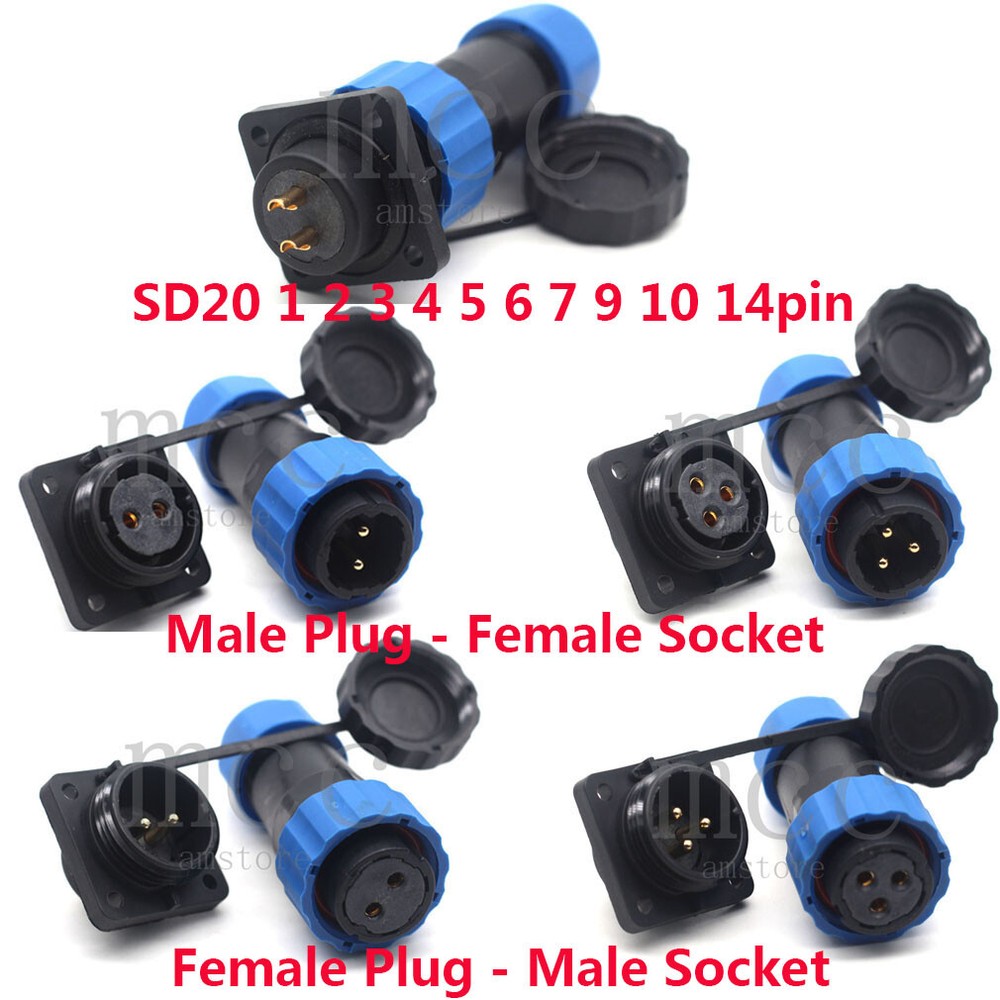

SD20 1-14pin Bulkhead Aviation Waterproof IP68 Plug Socket Power Cord Connector
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Compatible Mounting Type | Panel |
| Compatible Wire Gauge (AWG) | 6-10 |
| Country/Region Of Manufacture | China |
| Connector Style | Cable Connector |
| Material | Plastic |
| Type | power connector |
| Test Voltage | 1500V |
| Color | Black+Blue |
| Contact Material | Brass |
| MPN | SD20 |
| Current Type | AC / DC |
| Brand | MCCAMSTORE |
| Termination Type | solder |
SD20 1 2 3 4 5 6 7 9 10 12 14pin Waterproof IP67 Power Cord Connector ,Aviation Industry Plug Socket Specifications，1pin 2pin 3pin 4pin 5pin : Rated current (A): 25A Contact diameter×quantity: Φ2.8x1/ Φ2.8x2/ Φ2.8x3/Φ2.8x4/ Φ2.8x5 Rated voltage (AC.V.): 380V Withstand voltage (AC.V) 1 minute: 1500V Contact resistance: 1mΩ Wire recommendation: AWG9/ <2.8mm Specifications , 6pin, 7pin : Rated current (A): 10A Contact diameter × quantity: Φ1.8x6 / Φ1.8x7 Rated voltage (AC.V.): 380V Withstand voltage (AC.V) 1 minute: 1500V Contact resistance: 2mΩ Wire recommendation: AWG13/ <1.8mm Specifications , 9pin, 10pin 12pin 14pin: Rated current (A): 5A Contact diameter × quantity: Φ1.0x9 / Φ1.0x10 / Φ1.0x12 / Φ1.0x14 Rated voltage (AC.V.): 250V Withstand voltage (AC.V) 1 minute: 1500V Contact resistance: 5mΩ Wire recommendation: AWG18/ <1.0mm Coupling: Threaded Coupling Shell Material: Nylon 66, Fire Resistance: V0 Insert material: PPS man temperature 260° Contact Material: Brass (Gold Plated) Termination: Solder Cable outer diameter range: A8-12mm Protection class: IP68 Durability: ≥500 times Working temperature: -25℃～85℃ Insulation resistance: 2000MΩ What's in the package: 1 plug + 1 socket + 4 sets of screws
