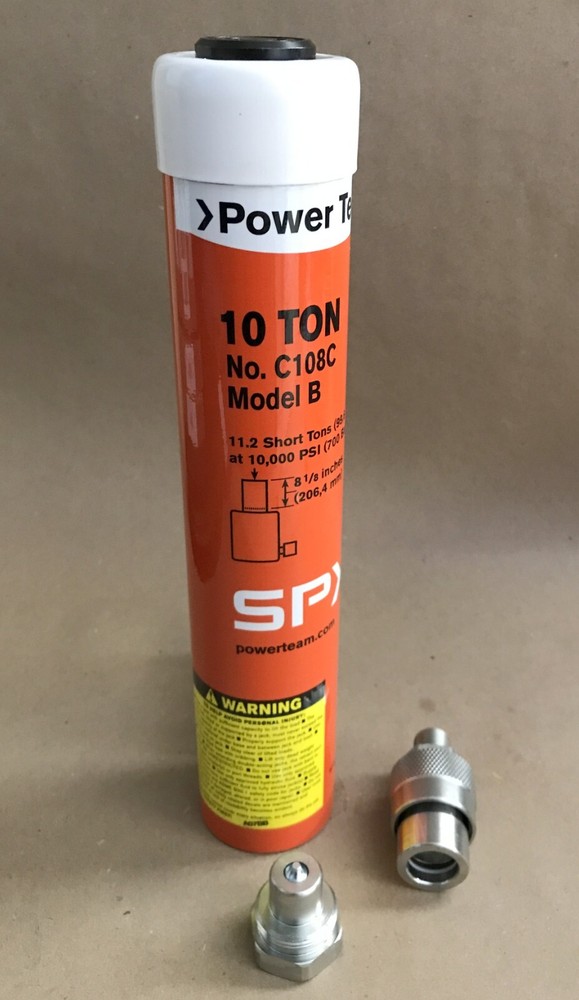

SPX Power Team C108C Single Act Cylinder 10 Ton INTERNAL RETURN SPRING AMERICAN
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| Brand | SPX |
| Suitable Media | Hydraulic Fluid |
| Cylinder Type | Single-Rod Cylinder |
| MPN | C106CBT |
| Stroke Length | 8.125 in |
| Cylinder Action | Single-Acting |
| Bore Diameter | 1.69 in |
| Maximum Pressure | 10,000 psi |
NEW FRESH PRODUCTION COMES WITH EXTRA COMPLETE SET FOR QUICK COUPLER AT NO EXTRA COST Power TeamRUGGED; HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSINGAluminum bronze bearing reduces wear caused by off-center loads.Maximum sized springs speed piston return and increase spring life.Solid steel cylinder body for durability.Chrome plated piston rod resists wear and corrosion.Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.Base mounting holes standard on 5 through 55 ton cylinders; optional on 75 and 100 ton cylinders.A 3/8 NPTF female half coupler is standard.Model No.: C108CCylinder Capacity (Tons): 10Stroke (in.): 8 1/8Oil Cap. (cu. In.): 19.9Bore Diameter (in.): 1 2/3Cylinder Effective Area (sq. in): 2.236Internal Pressure at Cap. (psi): 8948Tons at 10;000 psi (psi): 11.2Weight (lbs.): 11Retracted Height (in.): 11 3/4Extended Height (in.): 19 7/8Outside Diameter (in.): 2 1/4Collar Thread (in.): 2 1/4-14Piston Collar Thread Length (in.): 1 1/8Base to Port (in.): 3/4Piston Rod Diameter (in.): 1 1/2Piston Internal Thread and Depth (in.): 1-8 x 3/4Rod Protrusion (in.): 1/4"
