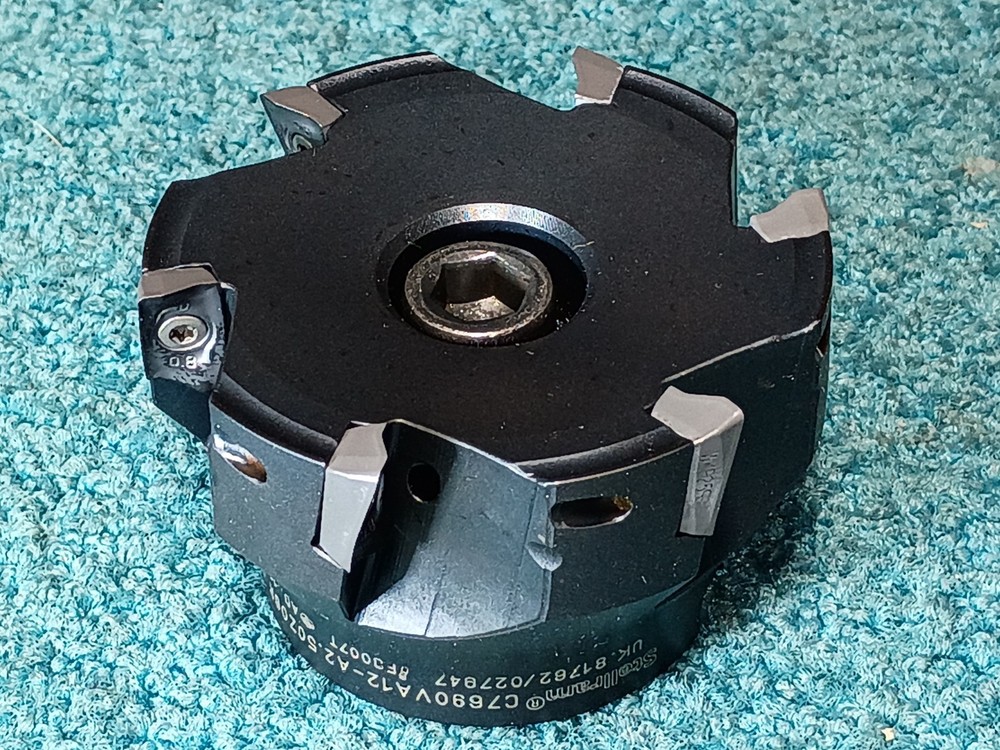

Stellram 2.50″ Face Mill Cutter 90° C7690VA12-A2.50Z06R W/New Walter ADMT WKP25S
USD 284.00 USD
Specifications
| Brand | Stellram |
| Included Angle | 90 degrees |
| MPN | C7690VA12-A2.50Z06R |
| Material | Carbide-Tipped |
| Mill Cutter Type | Face Mill |
| Cutting/Head Diameter | 2.50 in |
Item #370 Includes 6 new Walter ADMT120r08R-D56 WKP25S inserts The Stellram C7690VA12-A2.50Z06R is a 2.5-inch indexable facemill with a 0.75-inch bore/arbor and 6 flutes . It uses AD..12T3 (e.g., ADHT12-46 or ADKT12-45) style milling inserts, designed for high-performance facing, contouring, and general milling applications. The standard specifications for this cutter include: • Cutting Diameter: 2.5 inches (63.50 mm) • Arbor Hole: 0.75 inches (19.05 mm) • Number of Teeth: 6 (Z06) • Insert Style: AD.. 12T3 (85° Trigon) • EDP Number: 027947 Depending on the material you are machining and the specific Kennametal/Stellram grade (such as SP6519 or others), the required cutting speeds and feeds will vary.
