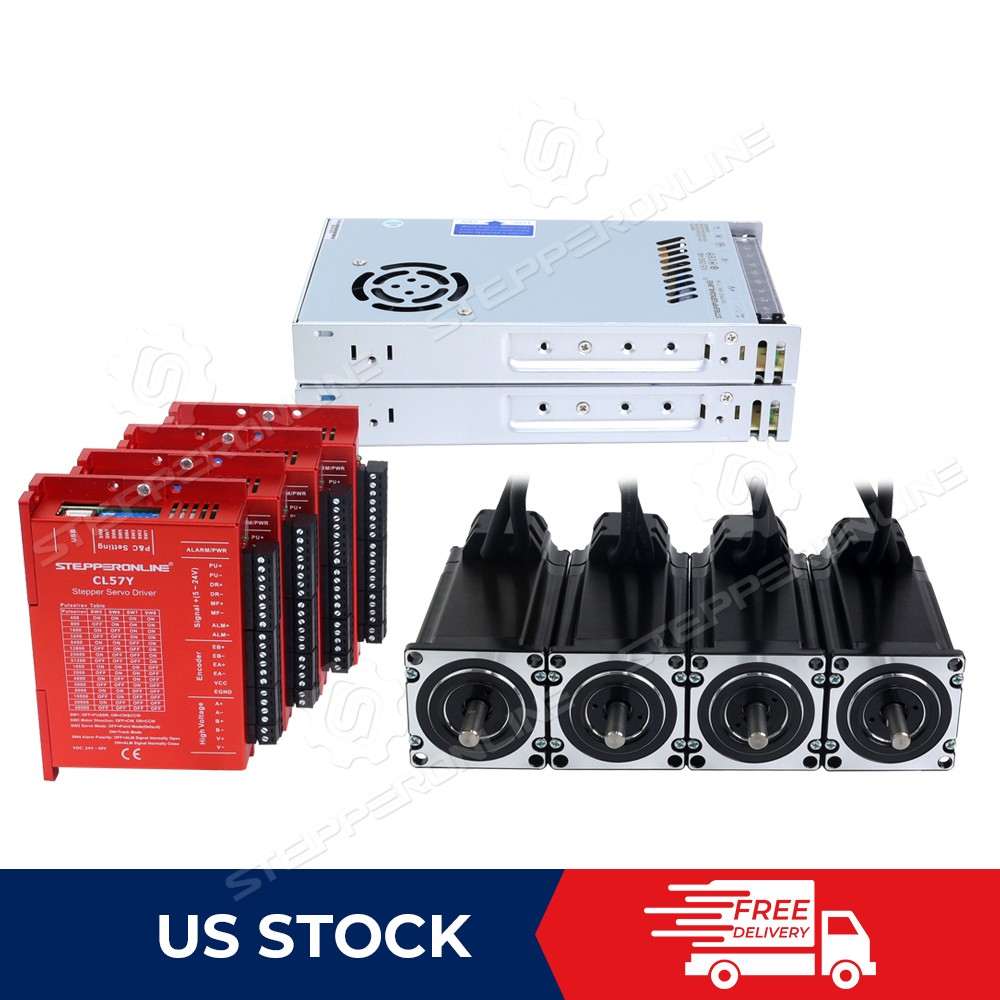

STEPPERONLINE 4 Axis Nema 23 57 Closed Loop Stepper Motor 425oz.in & Driver Kit
STEPPERONLINE 4 Axis Nema 23 57 Closed Loop Stepper Motor 425oz.in & Driver Kit STEPPERONLINE 4 Axis Nema 23 57 Closed Loop Stepper Motor 425oz.in & Driver Kit STEPPERONLINE 4 Axis Nema 23 57 Closed Loop Stepper Motor 425oz.in & Driver Kit STEPPERONLINE 4 Axis Nema 23 57 Closed Loop Stepper Motor 425oz.in & Driver Kit STEPPERONLINE 4 Axis Nema 23 57 Closed Loop Stepper Motor 425oz.in & Driver Kit STEPPERONLINE 4 Axis Nema 23 57 Closed Loop Stepper Motor 425oz.in & Driver Kit

STEPPERONLINE 4 Axis Nema 23 57 Closed Loop Stepper Motor 425oz.in & Driver Kit

USD 300.70 USD
SKU: A8E4qOly
Brand: StepperOnline
MPN: 4-CLYS30-1M5
GTIN: Does not apply
Condition: New
Tags: 0.7ohms ± 10% 1.8° (200 Steps) 1000PPR(4000CPR) 2.3mH ± 20%(1KHz) 2.5μS 3.00Nm(424.83oz.in) 4-CLYS30-1M5 5.0A 500MΩ China Optical Incremental STEPPERONLINE Φ8mm
Categories: Fasteners & Hardware

Specifications

BrandStepperOnline
Full Step Angle1.8° (200 Steps)
Shaft DiameterΦ8mm
MPN4-CLYS30-1M5
Holding Torque3.00Nm(424.83oz.in)
Rated Current Per Phase5.0A
Resistance Per Phase0.7ohms ± 10%
Country/Region Of ManufactureChina
Inductance2.3mH ± 20%(1KHz)
Encoder TypeOptical Incremental
Encoder Resolution1000PPR(4000CPR)
Isolation Resistance500MΩ
Pulse Width2.5μS

4 x Closed Loop Stepper Driver 0-7.0A 24-50VDC for Nema 17, 23, 24 Stepper Motor. 4 x Nema 23 Closed Loop Stepper Motor 3.00Nm(424.83oz.in) Encoder 1000PPR(4000CPR). Motor Type: Bipolar Stepper. Step Angle: 1.8deg.
