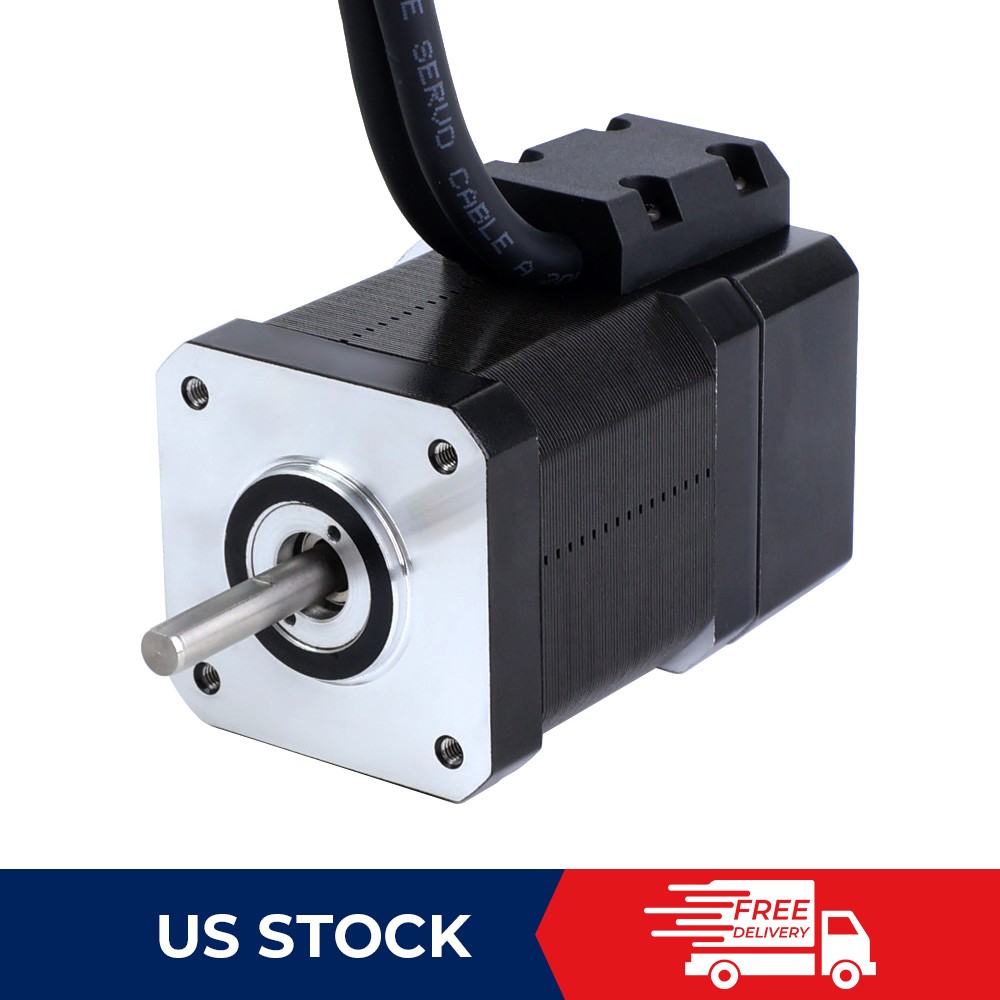

STEPPERONLINE Nema 17 Closed Loop Stepper Motor 74oz.in 1.8deg 2A w/ Encoder
USD 32.50 USD
Specifications
| Brand | StepperOnline |
| Nominal Rated Input Voltage | 12 V, 24 V, 12-24VDC |
| Shaft Type | D-Cut |
| Wiring Configuration | 4-Wire Bipolar |
| Shaft Diameter | 5mm |
| Full Step Angle | 1.8° (200 Steps) |
| IP Rating | IP40 |
| MPN | 17HS19-2004D-E1K |
| Actual Rated Input Voltage | 12-24VDC |
| Holding Torque | 52Ncm(73.64oz.in) |
| Insulation Class | B (Max 266°F) |
| Rated Current Per Phase | 2.0A |
| Resistance Per Phase | 1.1ohms |
| Country Of Origin | China |
| Encoder Type | Optical Incremental |
| Output Circuit Type | Differential |
| Encoder Resolution | 1000PPR |
Compared with open-loop stepper motors, it has higher precision, higher torque, less motor heat, lower power consumption, and better response to external factors. Encoder Specification. Encoder Resolution: 1000PPR(4000CPR).
