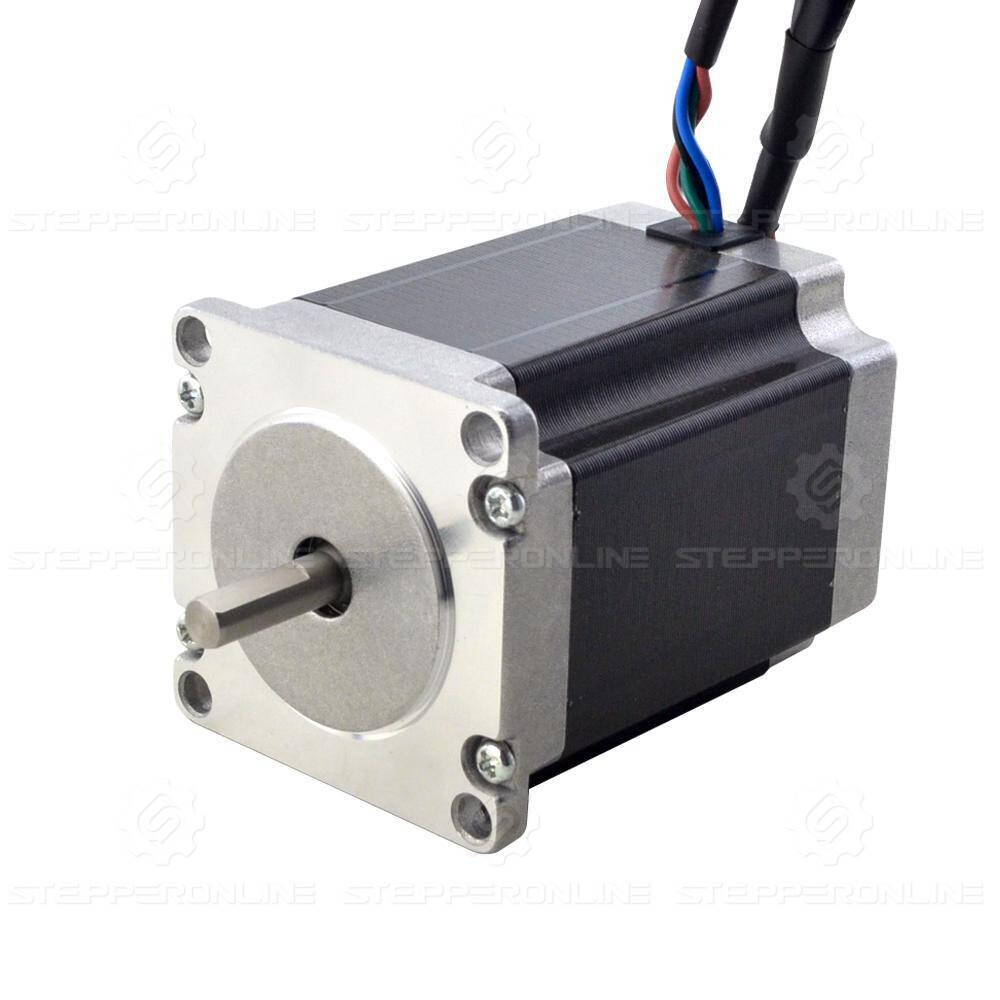

STEPPERONLINE Nema 23 Closed Loop Stepper Motor 262oz.in with Encoder φ6.35mm
USD 32.90 USD
Specifications
| Brand | StepperOnline |
| MPN | 23HS30-2804-ME1K |
| Full Step Angle | 1.8° (200 Steps) |
| Wiring Configuration | 4-Wire Bipolar |
| Shaft Diameter | 6.35mm(0.25 in) |
| Shaft Type | D-CUT |
| IP Rating | IP40 |
| Actual Rated Input Voltage | 24-48VDC |
| Holding Torque | 1.85Nm(262oz.in) |
| Rated Current Per Phase | 2.8A |
| Resistance Per Phase | 1.13ohms± 10% |
| Country/Region Of Manufacture | China |
| Shaft Diameter(mm) | 6.35 |
| Encoder Type | Magnetic Incremental |
| Output Circuit Type | Differential type |
| Encoder Resolution | 1000PPR |
This nema 23 closed loop stepper motor with torque of 1.85Nm(262oz. The encoder is a magnetic encoder with 3 channels and 1000PPR(4000CPR) resolution. Holding Torque: 1.85Nm(262oz. Encoder Specification. ).
