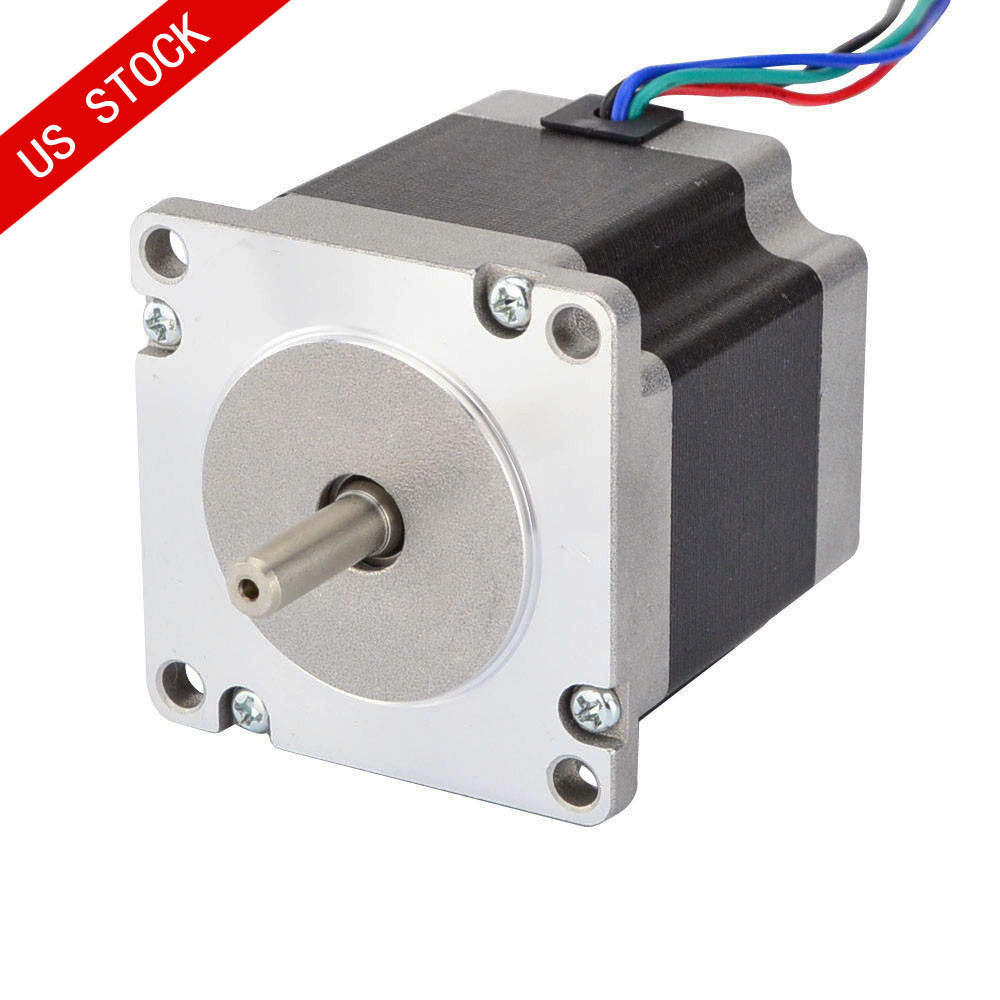

STEPPERONLINE Nema 23 Stepper Motor 0.9deg 1.26Nm(178.4oz.in) 2.8A 56mm 4 Wires
USD 26.50 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | China |
| Rated Current Per Phase | 2.8A |
| Wiring Configuration | 4-Wire Bipolar |
| Actual Rated Input Voltage | 24-48VDC |
| MPN | 23HM222804S |
| Full Step Angle | 0.9° (400 Steps) |
| Motor Type | Bipolar Stepper |
| Inductance | 4.5mH ± 20%(1KHz) |
| Frame Size | 57 x 57mm |
| Body Length | 56mm |
| Shaft Length | 21mm |
| Holding Torque | 1.26Nm(178.4oz.in) |
| Brand | STEPPERONLINE |
| Nominal Rated Input Voltage | 24 V |
| Resistance Per Phase | 0.9ohms |
