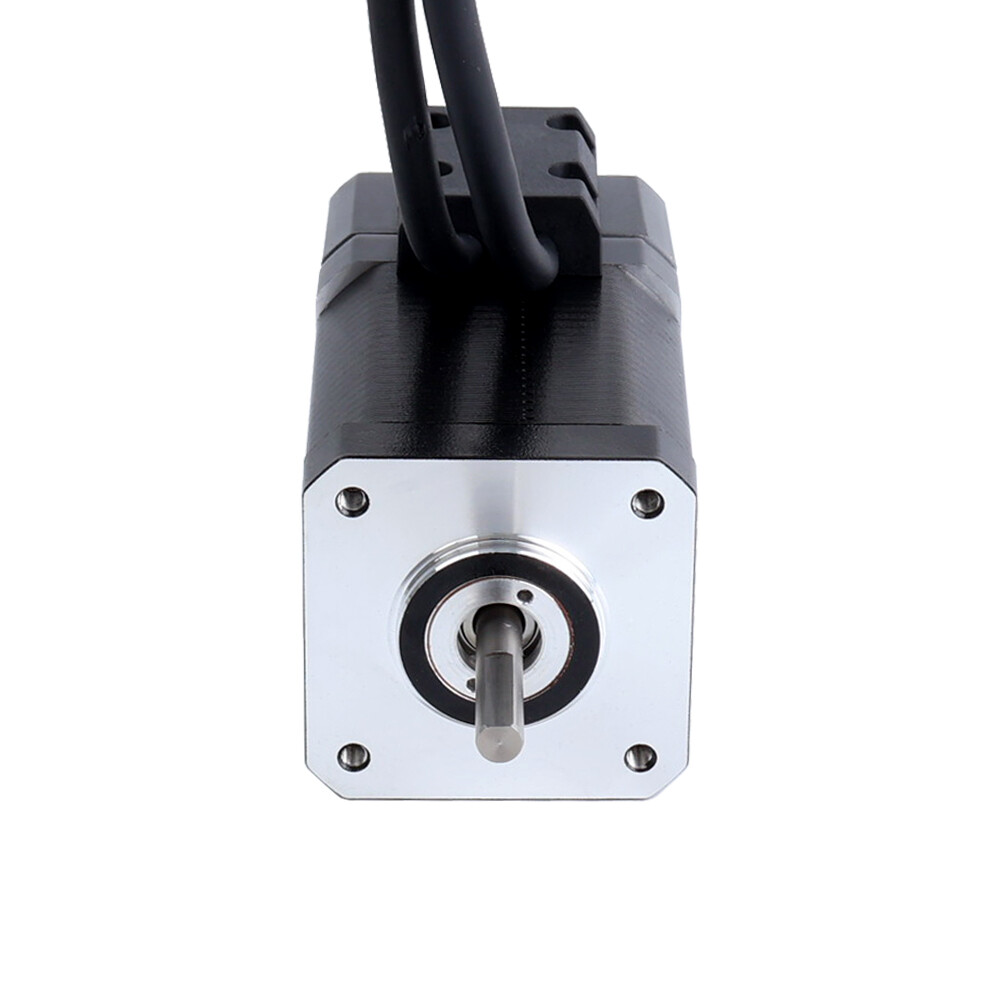

STEPPERONLINE Nema17 ClosedLoop Stepper Motor 80Ncm 2A w/Encoder 1000PPR 42x80mm
USD 26.29 USD
Specifications
| Brand | StepperOnline |
| Full Step Angle | 1.8° (200 Steps) |
| Shaft Diameter | Φ5mm |
| MPN | 17HS24-2004D-E1K |
| Actual Rated Input Voltage | 12-24VDC |
| Holding Torque | 80Ncm(113.29oz.in) |
| Rated Current Per Phase | 2.0A |
| Resistance Per Phase | 1.3ohms |
| Country/Region Of Manufacture | China |
| UPC | 742803058054 |
| EAN | 0742803058054 |
| Shaft Diameter: | Φ5mm |
| Inductance | 2.7mH ± 20%(1KHz) |
| D-cut Shaft Length | 15mm |
| Encoder Type | Optical Incremental |
| Encoder Resolution | 1000PPR(4000CPR) |
Compared with open-loop stepper motors, it has higher precision, higher torque, less motor heat, lower power consumption, and better response to external factors. Holding Torque: 80Ncm(113.29oz.in). Encoder Resolution: 1000PPR(4000CPR).
