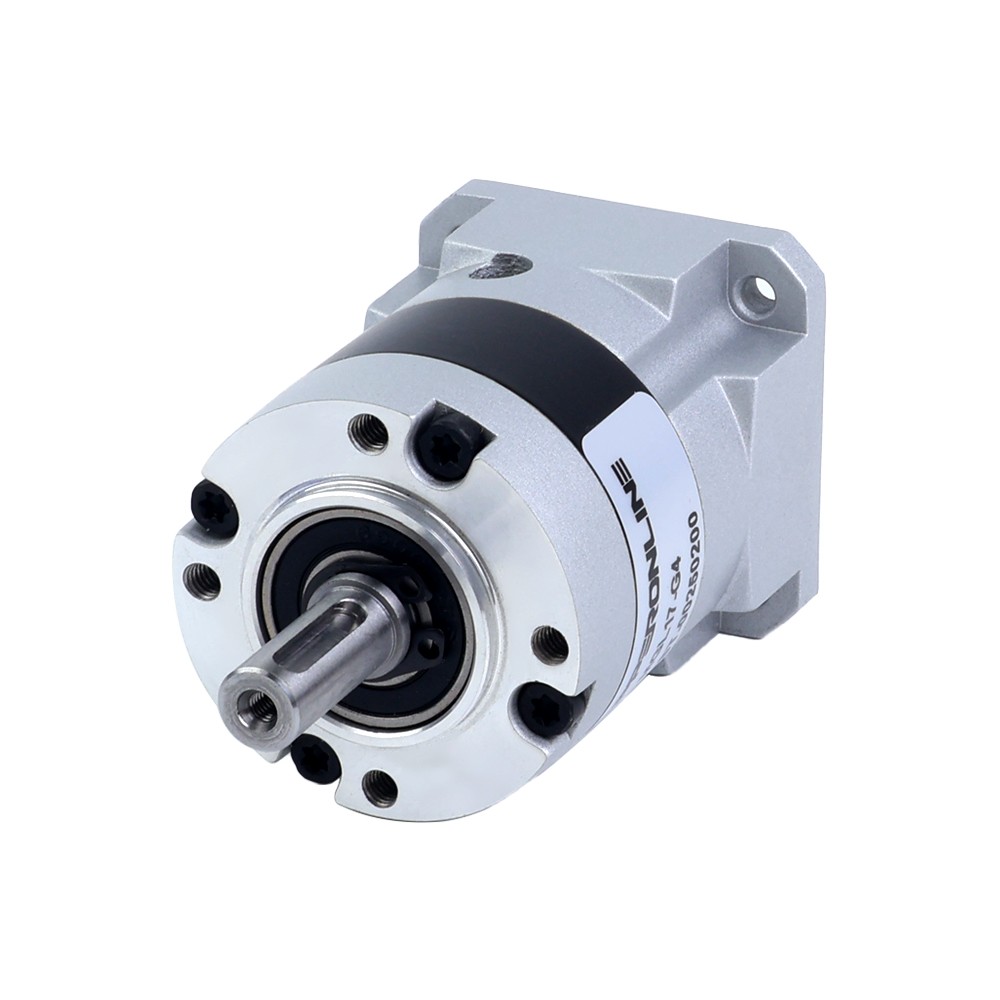

STEPPERONLINE Planetary Gearbox Ratio 4~100 30~45arc-min Φ8mm for Nema17 Stepper
USD 25.76 USD
Specifications
| Ratio | Ratio 4:1 |
| Brand | STEPPERONLINE |
| MPN | MGL17 |
| Country/Region Of Manufacture | China |
| Input Shaft Diameter | Φ5mm |
| Output Shaft Diameter | Φ8mm |
| Output Shaft Type | KeyWay |
| Gearbox Type | Spur Planetary |
| Input Shaft Length | 21.5-25mm |
| Output Shaft Length | 21.5mm |
| Waterproof Rating | IP54 |
| Shaft Maximum Axial Load | 100N |
| Shaft Maximum Radial Load | 100N |
| Rated Input Speed | 1000rpm |
| Gear Material: | Powder Metallurgy |
Gearbox Type: Spur Planetary. Gearbox Specifications. Gearbox Length: 55mm. Gearbox Length: 66mm. Efficiency: 90%. Gear Ratio: 4/5:1. Gear Ratio: 10:1. Note:This MGL series gearboxes are ideally suited for standard Nema 17 motors featuring a long shaft length of 21.5-25mm.
