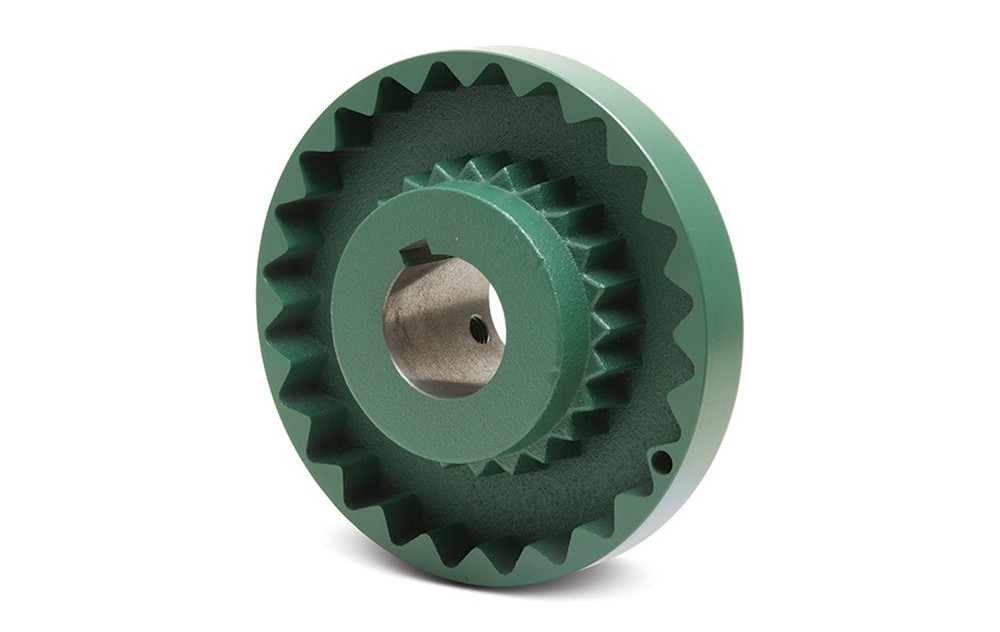

Tb Woods 8S78 Sure-Flex Sleeve Coupling Flange, 8S, Bore 7/8″

USD 29.49 USD

SKU: greSovnq

Brand: TB WOODS

MPN: 8S78

GTIN: 698672640466

Condition: New

Tags: 2.09 3/16 x 3/32 4500 5.4200 5.450 6.600 698672640466 7/8" 8S78 Cast Iron None Sleeve Coupling Flange TB Woods

Categories: Medical, Lab & Dental Supplies

Specifications

Material Of Construction	Cast Iron
MPN	8S78
Outside Dia. (In.)	5.450
Max. RPM	4500
Depth	6.600
Item	Sleeve Coupling Flange
Hub Dia. (In.)	5.450
Height (In.)	5.450
Style	Sleeve Coupling Flange
Width	6.600
Length Through Bore (In.)	2.09
Bushing Required	None
Bore Dia. (In.)	7/8
Keyway Width (In.)	7/8
Weight	5.4200
Brand	TB WOODS
Type	Sleeve Coupling Flange
Keyseat Size (In.)	3/16 x 3/32
Length	6.600
Model	8S78
Width (In.)	2.09
UPC	698672640466

The Tb Woods 8S78 Sure-Flex Sleeve Coupling Flange is a high-quality cast iron coupling designed for industrial applications. With a bore size of 7/8 inch, this sleeve coupling flange can accommodate a maximum speed of 4500 RPM and provides a maximum angular misalignment of 1 degree for EPDM and neoprene sleeves. Ideal for use in motors, pumps, compressors, blowers, mixers, and other machinery, this coupling is built to last and ensure smooth and efficient operation. Featuring a type-S flange close-coupled design and one set screw over the key and one at 90 degrees, the Tb Woods 8S78 Sure-Flex Sleeve Coupling Flange is a reliable choice for various industrial settings.
