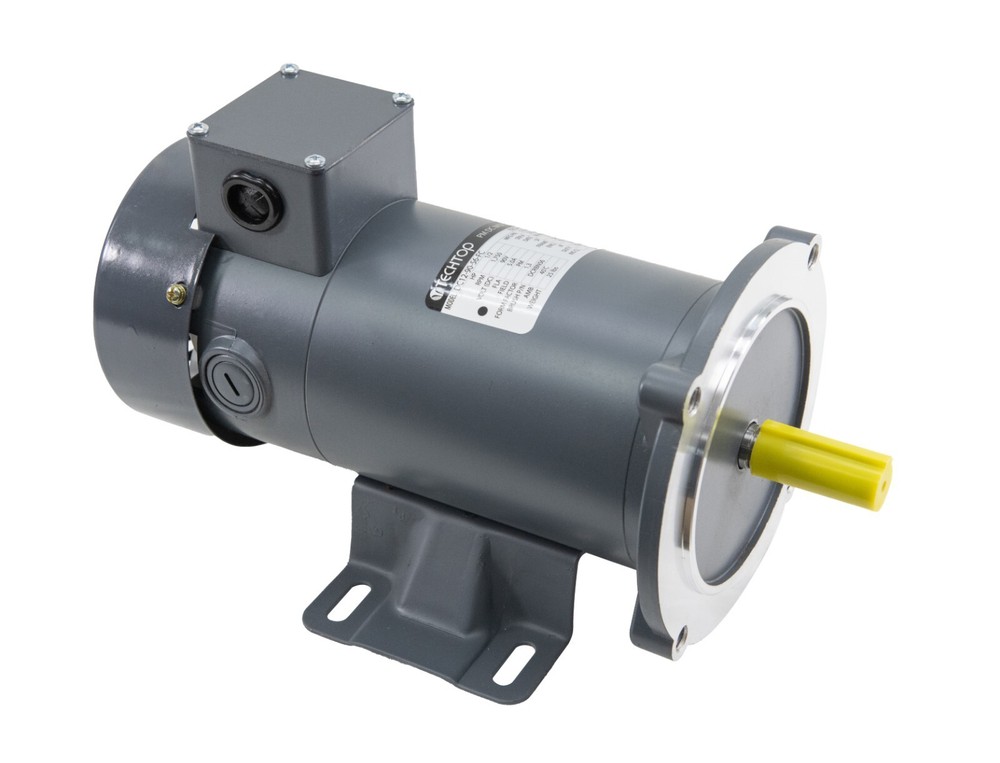

Techtop DC12-90-56-FC Electric Motor 1/2 HP 1750 Rpm 90 Volt DC 56C Frame TEFC
USD 303.20 USD
Specifications
| Full Load Amps | 5.2 |
| Rated Load (HP) | 1/2 |
| Base RPM | 1800 |
| Shaft Type | Keyed |
| Shaft Diameter | 5/8 in |
| MPN | DC12-90-56-FC |
| Insulation Class | F (Max 311°F) |
| Replaces | 098000.00 |
| DC Stator/Winding Type | Permanent Magnet |
| Brand | Techtop |
| Reversible/Non-Reversible | Reversible |
| IP Rating | IP54 |
| Service Factor | 1.00 |
| Nominal Rated Input Voltage | 90 V |
| Model | DC129056FC |
| Country/Region Of Manufacture | China |
We are an authorized Techtop distributor. • IP 54 (TEFC) & IP 55 (TENV) Rated. • 1.0 Service Factor. • Class B Temperature Rise. • 20:1 Constant Torque speed range. The photo is a representative photo and the motor may differ from what is shown.
