Techtop GR3-CI-TF-286TC-4-BR-D-30 Motor 30 HP 1800 Rpm 3-PH 230/460 Volt 286TC

USD 2372.00 USD

SKU: QHby2ml8

Brand: Techtop

MPN: GR3-CI-TF-286TC-4-BR-D-30

Condition: New

Tags: 1-7/8 in 1.25 1800 1800 RPM 230 V, 460 V 60 Hz China F (Max 311°F) Induction/Asynchronous Inverter Duty IP55 Keyed Reversible Techtop Three Phase

Categories: Metalworking Equipment

Specifications

Inverter/Vector Duty Rating	Inverter Duty
AC Frequency Rating	60 Hz
Base RPM	1800
Shaft Type	Keyed
AC Motor Type	Induction/Asynchronous
Shaft Diameter	1 7/8 in
Insulation Class	F (Max 311°F)
Brand	Techtop
Reversible/Non-Reversible	Reversible
IP Rating	IP55
Service Factor	1.25
Nominal Rated Input Voltage	230 V, 460 V
Country/Region Of Manufacture	China
AC Phase	Three Phase

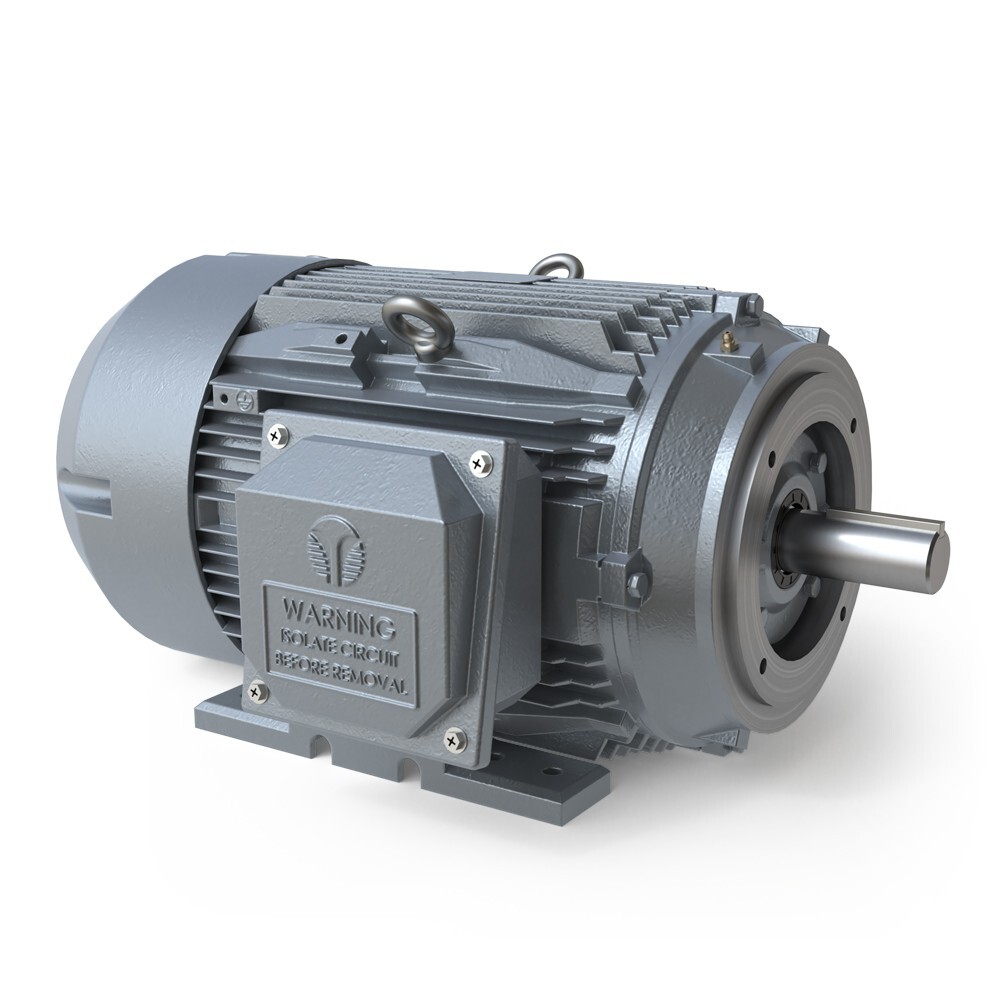

Sale is for One Techtop GR3-CI-TF-286TC-4-BR-D-30 Motor 30 HP 1800 Rpm 3-PH 230/460 Volt 286TC. We are an authorized Techtop distributor. • Heavy Duty Cast Iron Fan Cover. The photo is a representative photo and the motor may differ from what is shown.
