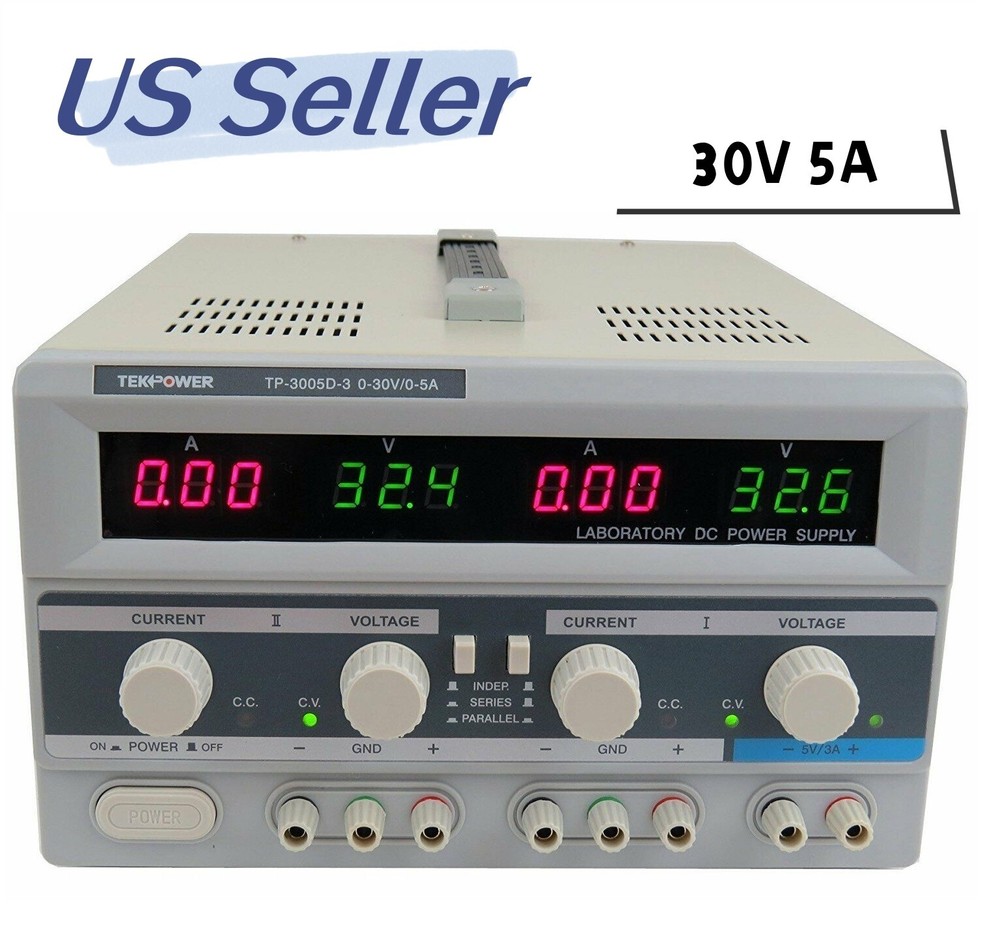

Tekpower TP-3005D-3 Triple Outputs Linear-Type DC Power Supply, 0-30 Volts 0-5 A
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Maximum Current Output | 5 A |
| Adjustable Power Supply Type | Linear Power Supply |
| MPN | Does Not Apply |
| Brand | Tekpower |
The Tekpower TP3005D-3 variable DC power supply is a compact and affordable instrument that is suitable for both home and industrial use. This digital DC power supply has a total of three DC outputs, two of them have a maximum output voltage of up to 30 volts and current up to 5 amps, they may also be connected in series or in parallel for higher voltage or current; the last one has an output voltage of 5V and current up to 3 amps. It comes with rotary switches for setting up the voltage and current. With its reliability and versatility, it's an invaluable and indispensable tool for testing, science project and etc., ideal for labs, research institutes, R & D facilities.Specifications:Output DC Voltage: 0.0 – 30.0VOutput DC Current: 0.00 – 5.00 AInput Voltage: 110V/AC, 60HzVoltage and Current adjustmentVoltage regulation: CV < 0.01% + 3mV, CC < 0.01% + 6 mALoad regulation: CV < 0.01% + 2mV, CC < 0.01% + 6mARipple and noises: CV < 1 mV rms, CC < 3 mA, rmsProtection: High current limitingOperating Temperature: 0 - 102 F (0 - 40 C), Relative Humidity: < 80%LCD Accuracy is within +/- 2.5%Size: 360 x 265 x 165 mmWeight: approx. 28 lbsWhat’s in the box:TP-3005D-3 power supplyPower cordTest leads with alligator clips (28 inches long)Warranty registration cardUser manual
