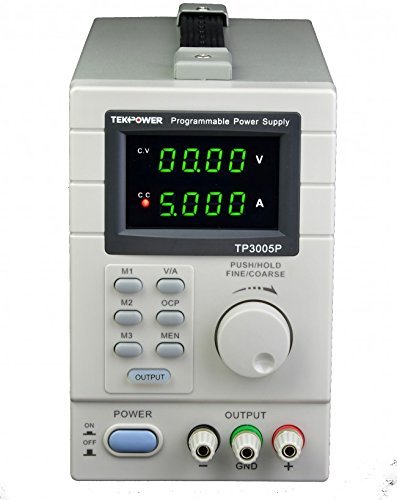

Tekpower TP3005P Programmable Variable DC Power Supply 0-30V at 0-5A
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Maximum Voltage Output | 30 V |
| Maximum Current Output | 5 A |
| MPN | Does Not Apply |
| Brand | Tekpower |
Product features Single-output programmable variable DC regulated power supply with dual LED displays adjusts continuously from 0 - 30 volts and 0 - 5 amps with both coarse and fine adjustment, 10 mA / 1 mV resolution over the full range Pro-level precision and accuracy with low noise and low ripple, plus built-in memories to easily and effortlessly store and access your frequently-used settings to save time and improve productivity USB interface enables remote control, operation, data exchange via a computer (Windows PC only), software and USB cable are included Automatically shut-off to prevent damage to the connected load with Over Current Protection (OCP) Cooling fan with thermo sensor, output sockets with insulation protection, and overload fuse protection ensure operational and personal safety, CE certified Specifications: Input voltage: 110 V/ 60 Hz Fuse: 4A /250 V Output voltage: 0-30 V Output current: 0-5 A Source effect: C.V. ≤ 0.01 % + 3 mV C.C. ≤ 0.1 % + 3 mA Load effect: C.V. ≤ 0.01 % + 2 mV C.C. ≤ 0.1 % + 10 mA Setup resolution: 10 mV, 1 mA Setup accuracy: ≤ 0.5 % + 20 mV, ≤ 0.5 % + 10 mA (25°C ± 5°C) Ripple: ≤ 2 mV rms, ≤ 3 mA rms Temperature coefficient: ≤ 100 ppm + 10 mV, ≤ 100 ppm + 5 mA Read back accuracy: 10 mV, 1 mA Read back temp. coefficient: ≤ 100 ppm + 10 mV, ≤ 100 ppm + 5 mA Reaction time (10% rated load): -voltage rise: ≤ 100 ms -voltage drop: ≤ 100 ms Dimensions: 4 ½“ (W) x 7 ½“ (H) x 9 ½“ (D) Weight: 11 lbs 10 oz
