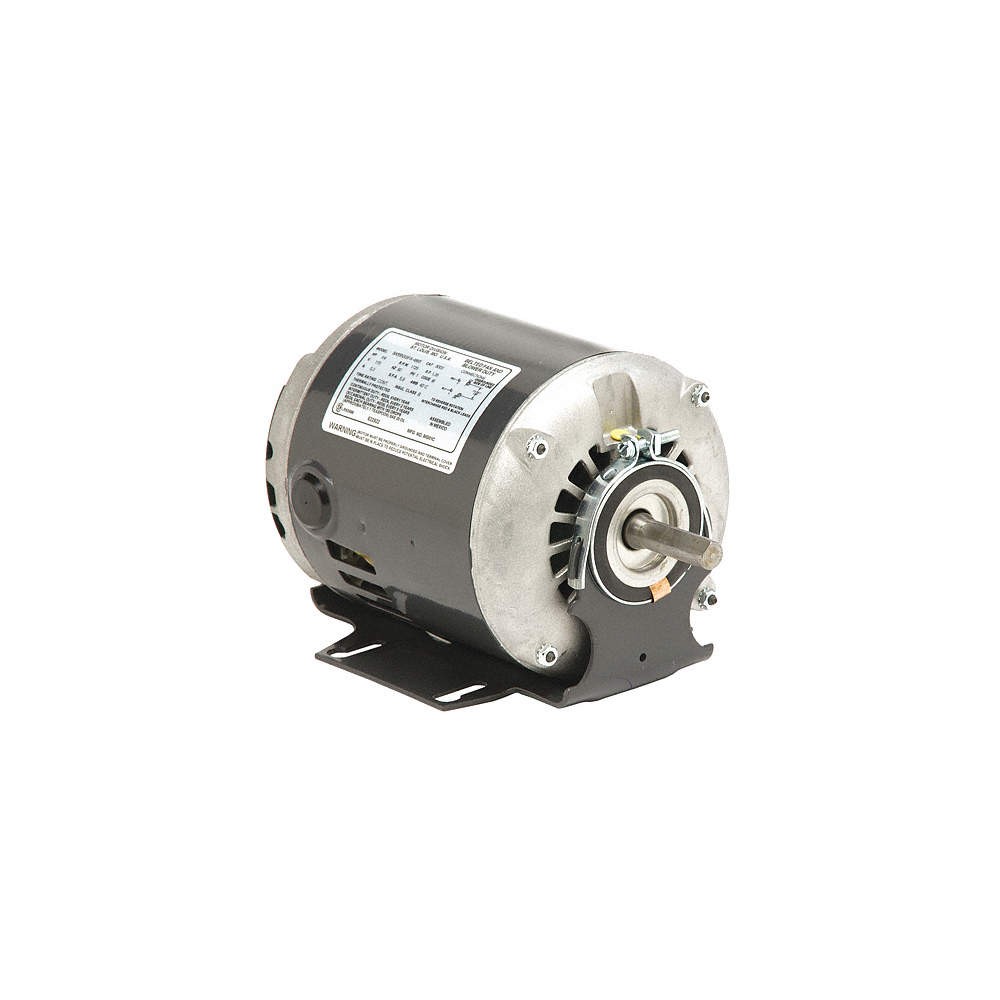

U.S. MOTORS 3618 Motor,1/4 HP,1725 rpm,48Z,115/208-230V 56JC87
USD 174.13 USD
Specifications
| Brand | U.S. MOTORS |
| Base RPM | 1460 rpm - 1770 rpm |
| AC Motor Type | Synchronous |
| Model | U20P2D |
| MPN | U20P2D |
| AC Phase | Three Phase |
Belt Drive Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 5.2/2.5-2.6 A Full Load Amps, 48Z Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.35, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal.
