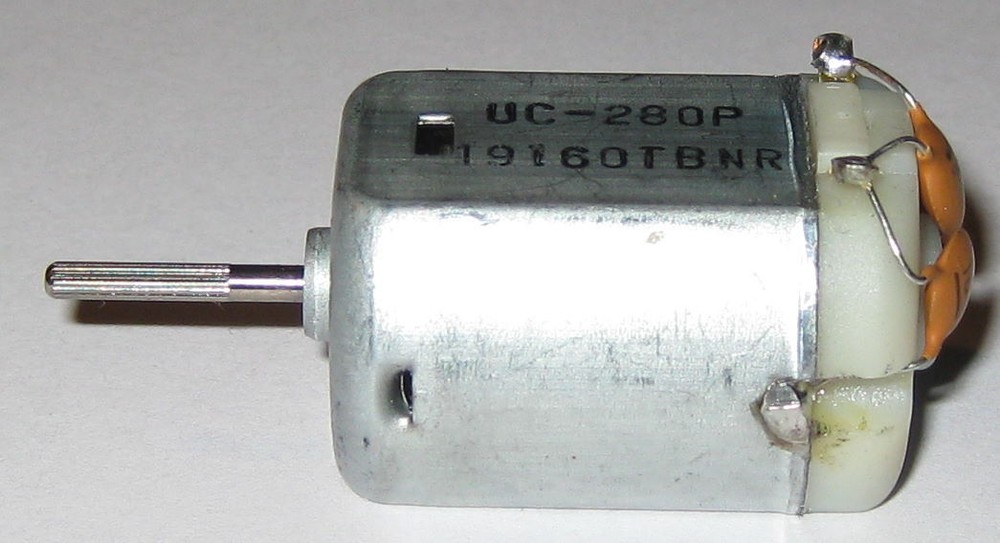

UC-280P 12VDC Electric Motor – Knurled Shaft – Filter Capacitor – Car DC Motor
USD 5.36 USD
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Full Load Amps | 0.57 A |
| MPN | UC-280P-19160 |
| DC Stator/Winding Type | Permanent Magnet |
| Shaft Type | Splined |
| Nominal Rated Input Voltage | 12 V |
| UPC | Does not apply |
| Model | UC-280P-19160 |
| Starting/Locked Rotor Torque | 250 g-cm |
| Reversible/Non-Reversible | Reversible |
| Rated/Full-Load Torque | 46 g-cm |
| Shaft Diameter | 2.0 mm |
| Base RPM | 11500 RPM |
| Brand | Nichibo |
| Type | Brushed Motors |
UC-280P 12V DC Motor - Knurled Shaft - Filter Capacitor - Car Motor Electric DC motor manufactured by Nichibo Model UC-280P-19160 Operates on 12 VDC nominal Operating voltage range: 6 VDC to 12 VDC No load speed at 12 VDC: 11,500 RPM No load current: 150 mA Full load (maximum efficiency @ 12 VDC) performance characteristics: Speed: 9,000 RPM Current: 570 mA Torque: 46 g-cm (4.51 mN-m) Power output: 4.3 Watts Stall torque: 250 g-cm (24.51 mN-m) Stall current: 2,900 mA Dimensions (not including shaft): 30.5 mm long x 18.3 mm thickness x 24 mm diameter Knurled shaft dimensions: 13 mm long x 2 mm diameter 2 solder terminals for easy power connection Motor comes with 3 noise filtering capacitors
