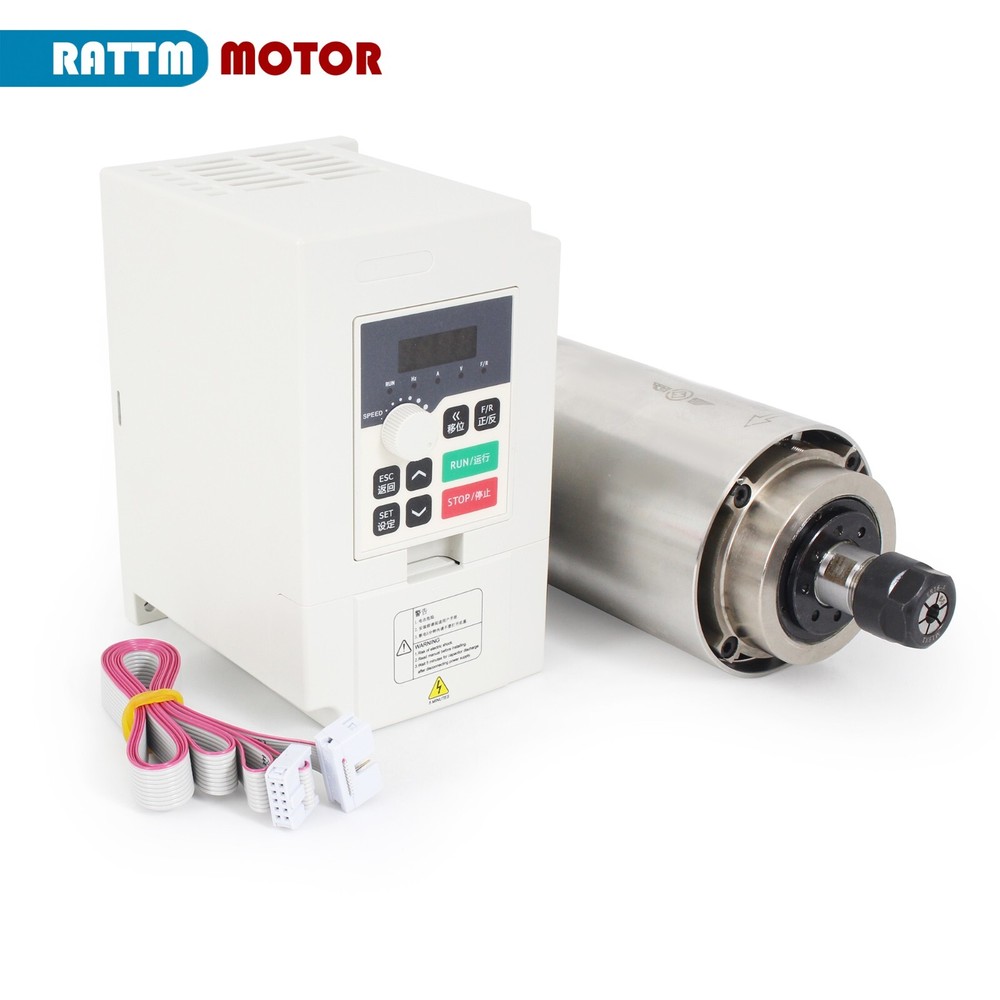

US SHIP】2.2KW 110V VFD Inverter+Air Cooled CNC Spindle Motor ER20 80MM 24000RPM

USD 234.00 USD

SKU: AoTWZFoA

Brand: RATTMMOTOR

Condition: New

Tags: 110V 15A 2.2KW 24,000RPM 400Hz China ER20 Induction/Asynchronous Less than 0.005m Less than 0.01mm RATTMMOTOR Spindle Motor Unit

Categories: Metalworking Equipment

Specifications

Country Of Origin	China
Actual Rated Input Voltage	110V
Speed	24000RPM
Special Motor Construction	Spindle Motor
AC Frequency Rating	400Hz
AC Motor Type	Induction/Asynchronous
Runout Off	Less than 0.01mm
Brand	RATTMMOTOR
Unit Type	Unit
Precision Tapered Bore	Less than 0.005m
Collet	ER20
Nominal Rated Input Voltage	110V
Current	15A
Power	2.2KW

ER20 Collet. Precision crafted ER20 collet and nut, high precision and reduced the rate of knife breakage. RATTMMOTOR 2.2KW 110V VFD. Using optimized 7 series P4 grade 7002 and 7005 bearings, this series of bearings has strong hardness and rust resistance, high precision, the radial runout of the spindle is less than 0.01mm, the precision taper hole does not exceed 0.005mm, high precision and durable.
