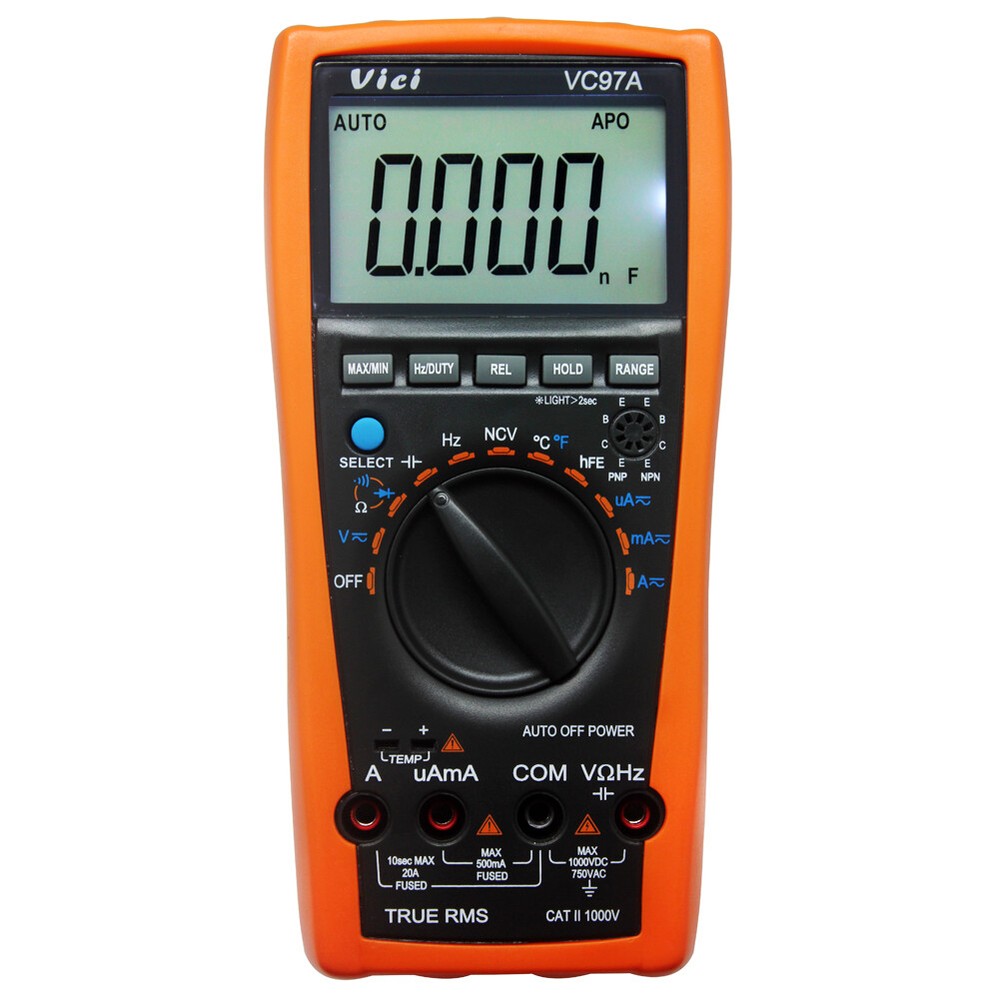

VICI VC97A 3999B LCD Auto range multimeter True RMS Backlight diode Temp USA
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Measurement Category | CAT II |
| Country/Region Of Manufacture | China |
| Features | Auto Power Off |
| MPN | VC97A |
| Model | VC97 |
| Bundled Items | Holster |
| Display | Digital |
| Brand | VICI |
| Test/Measurement Functions | AC Current |
VICHY VC97A 3999 Auto range multimeter New Features:1. True RMS measurement, NCV function, MAX/MIN data hold, Backlight display(but only for VC97A);2. Relative value measurement, Frequency/duty cycle, Data hold;3. Auto power off and Beeper alarm function;4. Full protection function, Anti-high voltage circuit design;5. Strong functions in Antimagnetic and Anti-interference6. Unit symbol display and easy reading.Technical data:True RMS:√NCV Function:√Diode/hFE measurement:√Backlight display:√Duty cycle measurement:√Continuity alarm:Less than 50Ω±10ΩLow battery indication:Less than approx 2.4 VData Hold:MAX，MIN，HOLDAuto Power Off:About 15 minutes laterFunction Protection:√Input Impedance:10MΩSampling Rate:3 times/secondsAC Frequency Response:40-400HzOperation method:Auto RangeMax display:4000LCD Size:65x41mmPower supply:2×1.5AAA (not INCLUDED)Power consumption:Quiescent current approx 2mABasic Function:Basic FunctionRangeAccuracyDC Voltage400mV/4V/40V/400V/1000V±(0.5%+5)AC Voltage400mV/4V/40V/400V/750V±(0.8%+10)DCA400uA/4000uA/40mA/400mA/4A/20A±(1.0%+5)ACA400uA/4000uA/40mA/400mA/4A/20A±(1.5%+10)Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(0.8%+2)Capacitance40nF/400nF/4uF/40uF/400uF/4mF/40mF±(2.5%+5)Frequency10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/30MHz±(0.5%+4)Temperature-40℃～1000℃（0F～1832℉）±(1.0%+5) General characteristicColorBody: dark grey, holster: orangeWeight520g (including all accesory)Meter size185×93×35mmStandard accessoryTest probes, CLIP, manual, TP01 temperature probe Package:1 x vc97A multimeter;1 x pair test probe;1 x pair test CLIP;1 x temperature probe;1 x manual;Shipping: USA orders will ship from USA, other orders will ship from China, thank you
