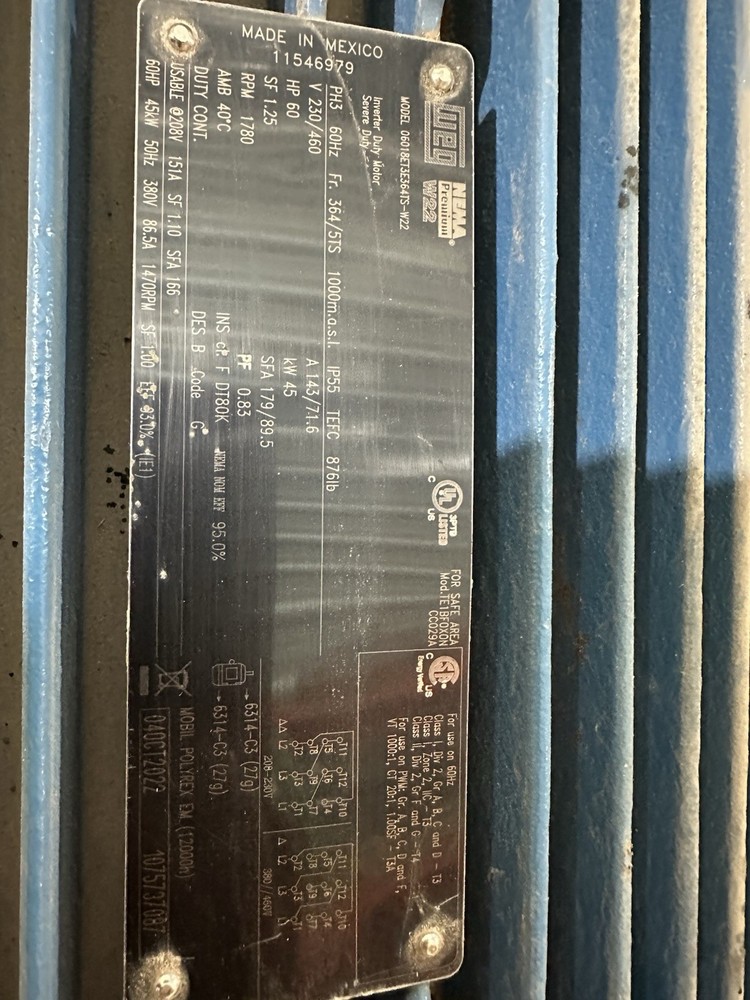

WEG 60HP Severe Duty Inverter Duty Motor 06018ET3E364T-S-W22
USD 3250.00 USD
Specifications
| Actual Rated Input Voltage | 208-230/460 |
| Inverter/Vector Duty Rating | Inverter Duty |
| Full Load Amps | 45.1/22.5 |
| AC Frequency Rating | 60 Hz |
| Special Motor Construction | Severe Duty Motor |
| Base RPM | 1775 |
| AC Motor Type | Induction/Asynchronous |
| MPN | 06018ET3E364T-S-W22 |
| Insulation Class | F (Max 311°F) |
| Mounting Type | Foot-Mounted |
| Brand | WEG |
| Protection Against Liquids | Water Jets |
| IP Rating | IP55 |
| Service Factor | 1.25 |
| Nominal Rated Input Voltage | 230 V, 460 V |
| Model | 06018ET3E364T-S-W22 |
| AC Phase | Three Phase |
| Protection Against Solids | Dust Protected |
WEG 60HP Severe Duty Inverter Duty Motor 06018ET3E364T-S-W22
