Winsmith – E26mwns, 30:1, 56C/140Tc Speed Reducer,C-Face,56C/140Tc,30:1
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 14 Days |
| Refund Will Be Given As | Money Back |
| Modification Description | N/A |
| Power Source | N/A |
| Housing Material | Cast Iron |
| Dimension B (In.) | 5.88 |
| Battery Size | N/A |
| Dimension G (In.) | 0.63 |
| Dimension L (In.) | 4.50 |
| Depth | 11.800 |
| Item | Speed Reducer |
| Dimension H | 1/2-13 |
| Number Of Batteries | N/A |
| Dimension F | 2.44" |
| Dimension D | 5.750" |
| Duty | Washdown |
| Dimension C | 2.625" |
| Voltage | N/A |
| Motor Type | N/A |
| Dimension B | 5.880" |
| Dimension A | 3.130" |
| Style | Speed Reducer |
| Width | 11.800 |
| Dimension E (In.) | 1.13 |
| Dimension F (In.) | 2.44 |
| Color | N/A |
| Dimension H (In.) | 1/2-13 |
| Housing | Cast Iron |
| Weight | 44.5500 |
| Dimension C (In.) | 2.625 |
| Brand | WINSMITH |
| Mounting | Universal |
| Type | Speed Reducer |
| Length | 13.100 |
| Dimension D (In.) | 5.75 |
| Dimension A (In.) | 3.13 |

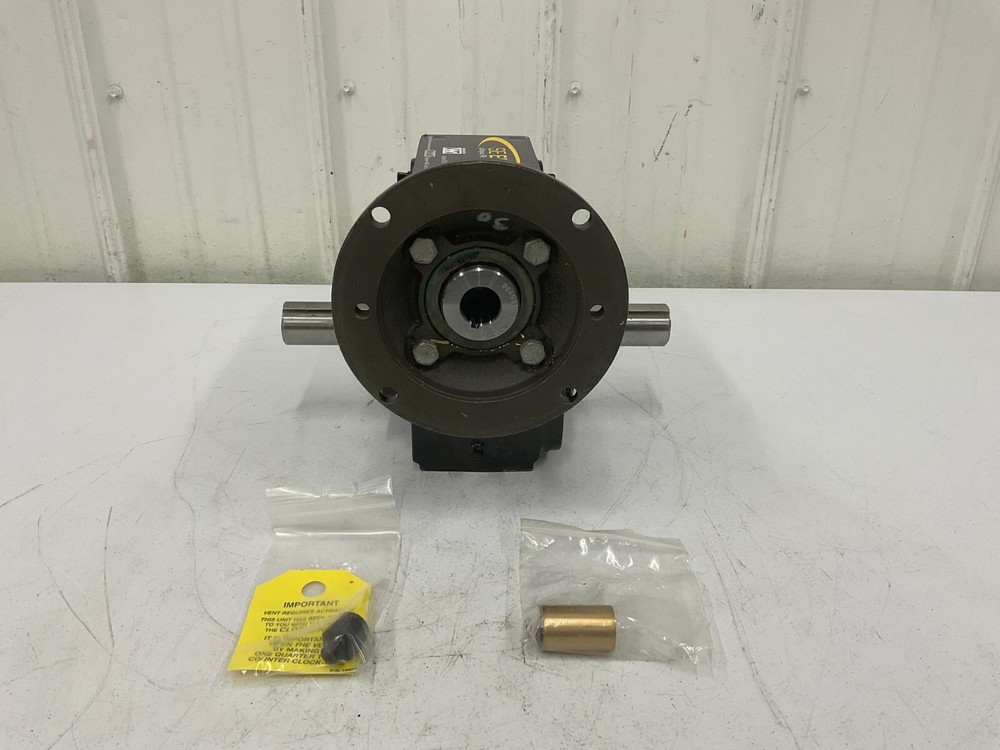

I am selling a Winsmith - E26mwns, 30:1, 56C/140Tc Speed Reducer,C-Face,56C/140Tc,30:1. This is listed as new/other, because it comes from an open box. This item has never been used or tested. What you see in the picture is exactly what will arrive at your door! Thank-you for looking and your satisfaction is guaranteed. If you have any questions or concerns, please don’t hesitate to contact us! Specs: BrandWINSMITHManufacturer Part NumberE26MWNS, 30:1, 56C/140TCMaximum Input Horsepower1.5 hpMaximum Output Torque1427 in-lbOverhung Load Capacity1,025 ft-lbInput Connection TypeC-FaceInput Shaft Diameter7/8 inOutput Shaft TypeHollowOutput Shaft Diameter1-1/4 inOutput Shaft Length3-1/8 inMaximum Output Speed58 RPMMaximum Input Speed1,725 RPMMotor Frame Designation56C/140TCWorm Center Distance2.63 inBase to Shaft Center3.13 inGear Ratio30:1Gear TypeWormNumber of Stages1RotationCW/CCWMounting OrientationAny AngleLubricationMobil Glygoyle(R) 460Housing MaterialCast IronHousing Material FinishEpoxy Coating SystemUNSPSC26111503 Country of OriginUSA (subject to change)
